Sumpter Valley #100 restoration project

page last updated:  August 15, 2006

On March, 3rd 2001 the first work party was held at Yanke Machine shop to start the restoration work on narrow gauge locomotive #100.  This locomotive is a Whitcomb locomotive built in 1929 (serial #13013).  Locomotive #100 was bought brand new for the Sumpter Valley Railway in 1930.  At some point in time #100 was sold to the J.R. Simplot corporation in Idaho and converted to standard gauge.  According to our current information there was reports of seeing this locomotive in service at the J.R. Simplot plant in Caldwell, Idaho in the mid 1980's.  If anyone has any more detailed or additional information on this locomotive please let me know.

Send feed back on this page to:

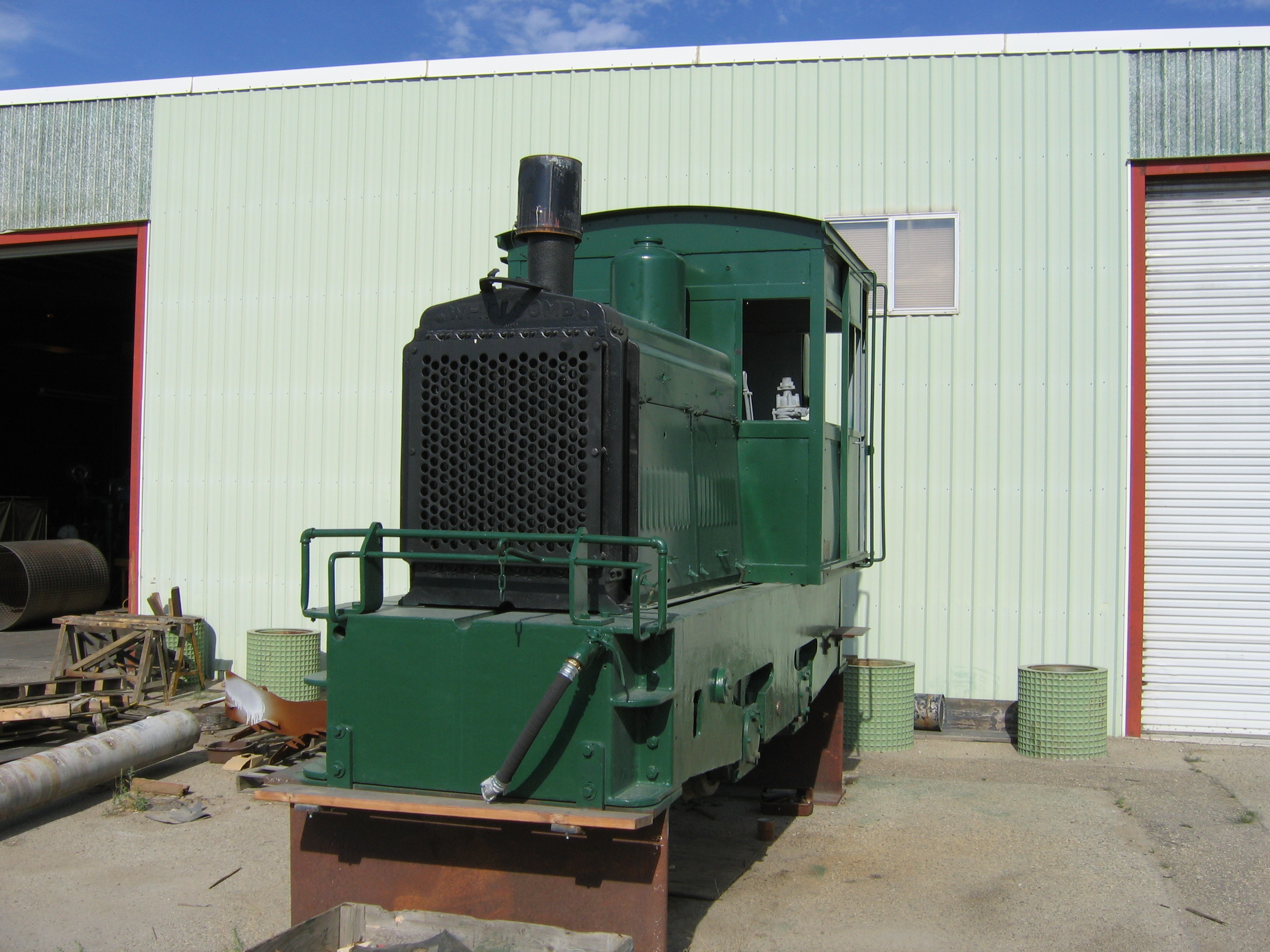

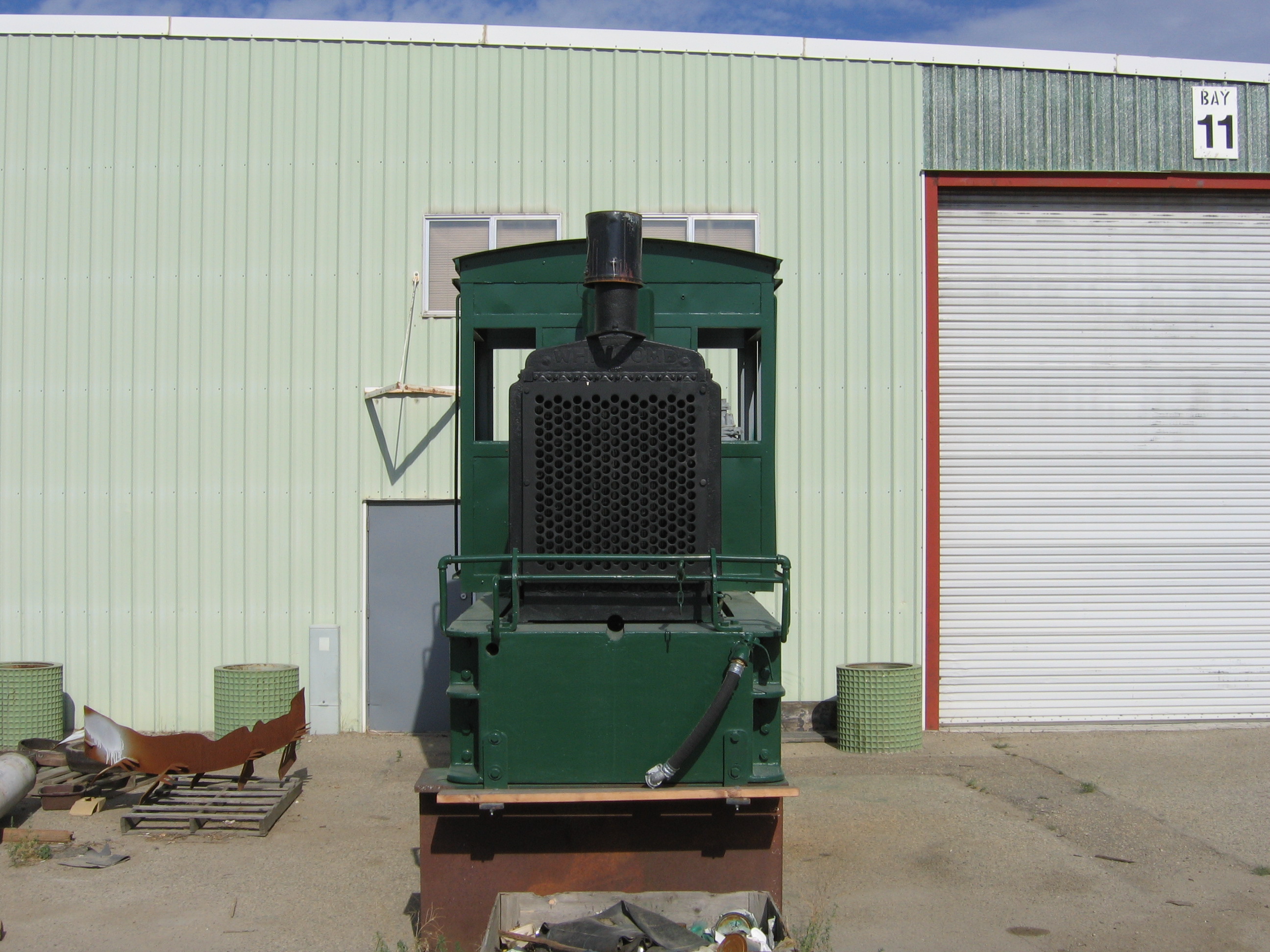

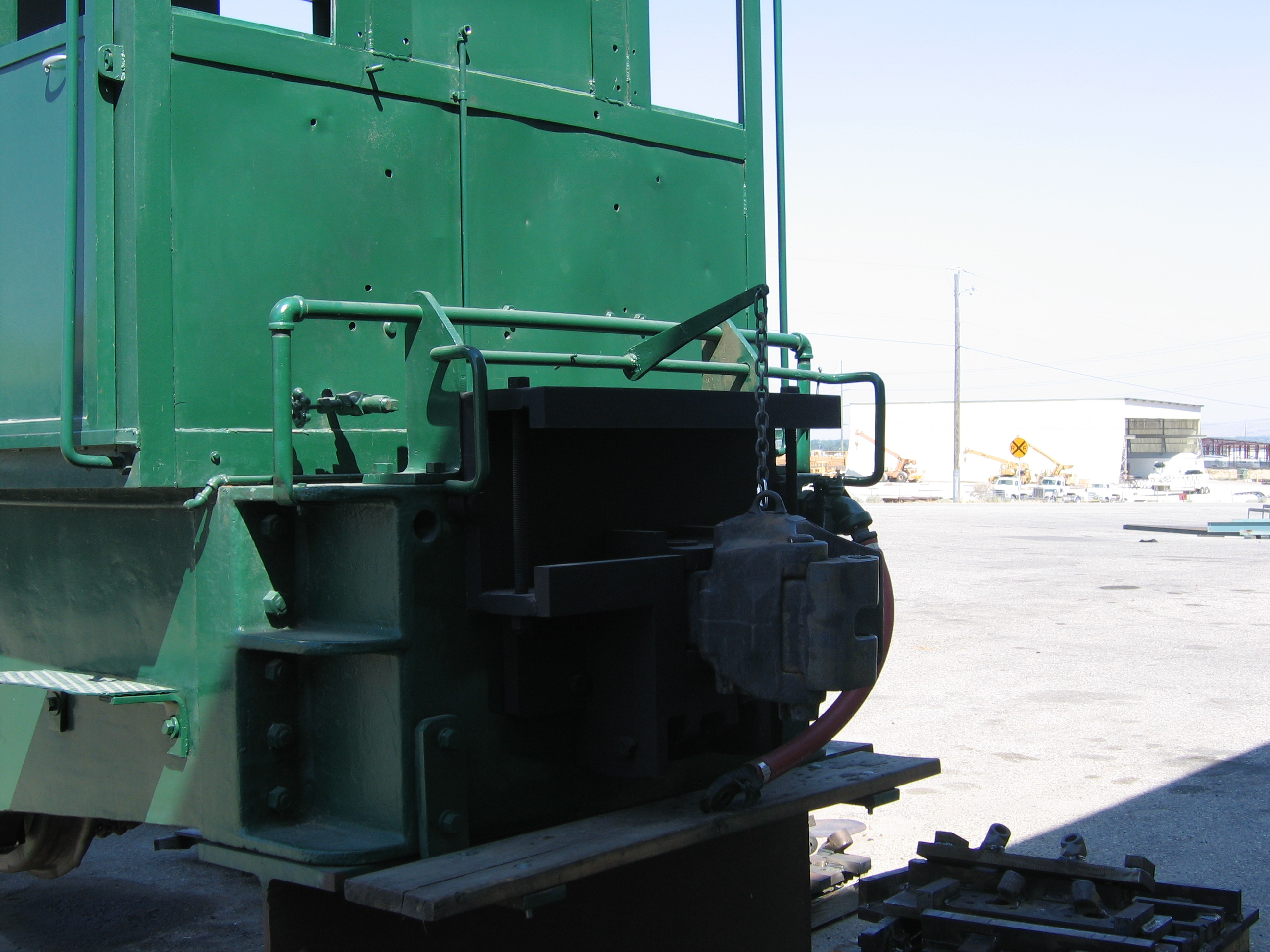

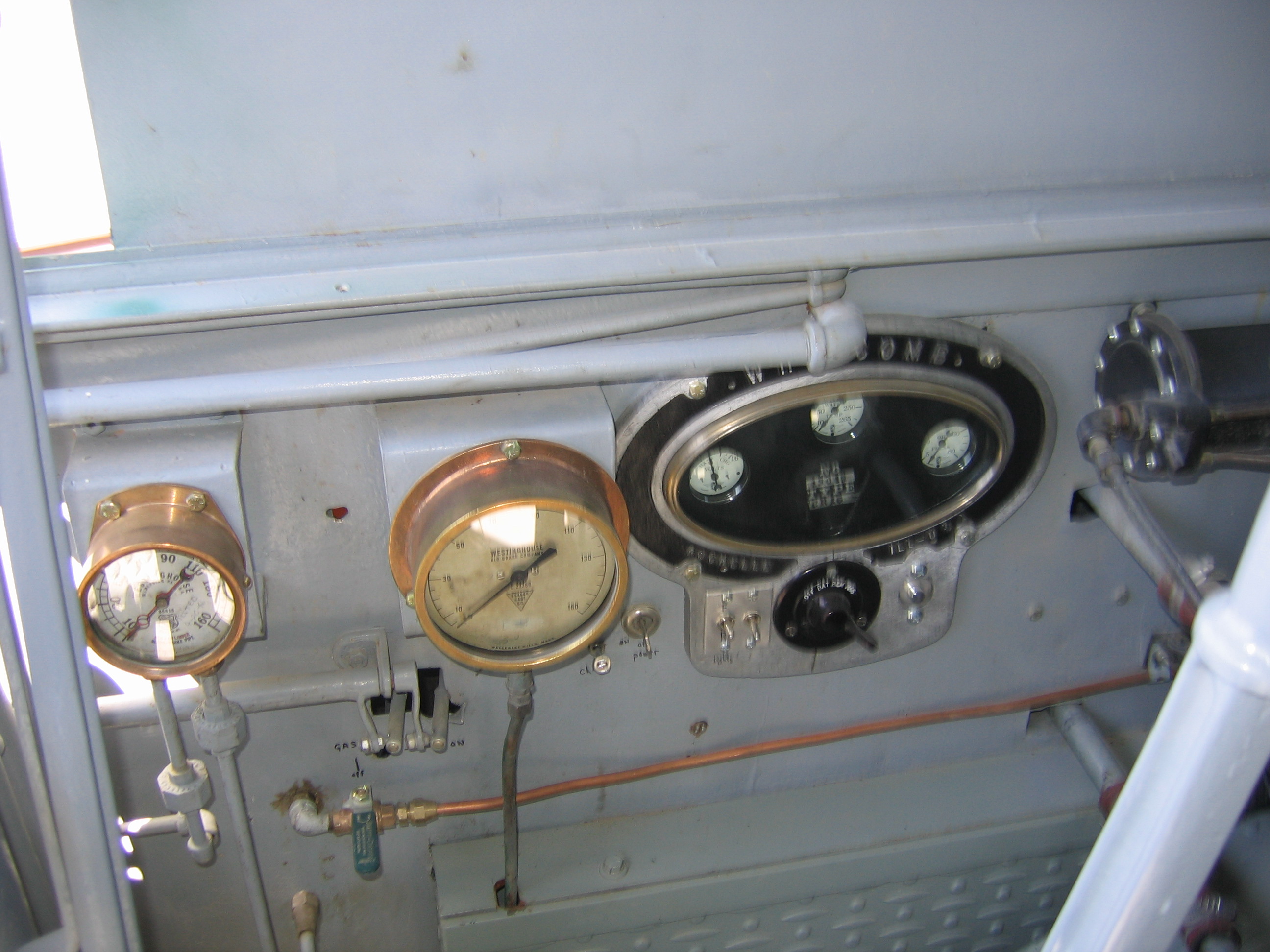

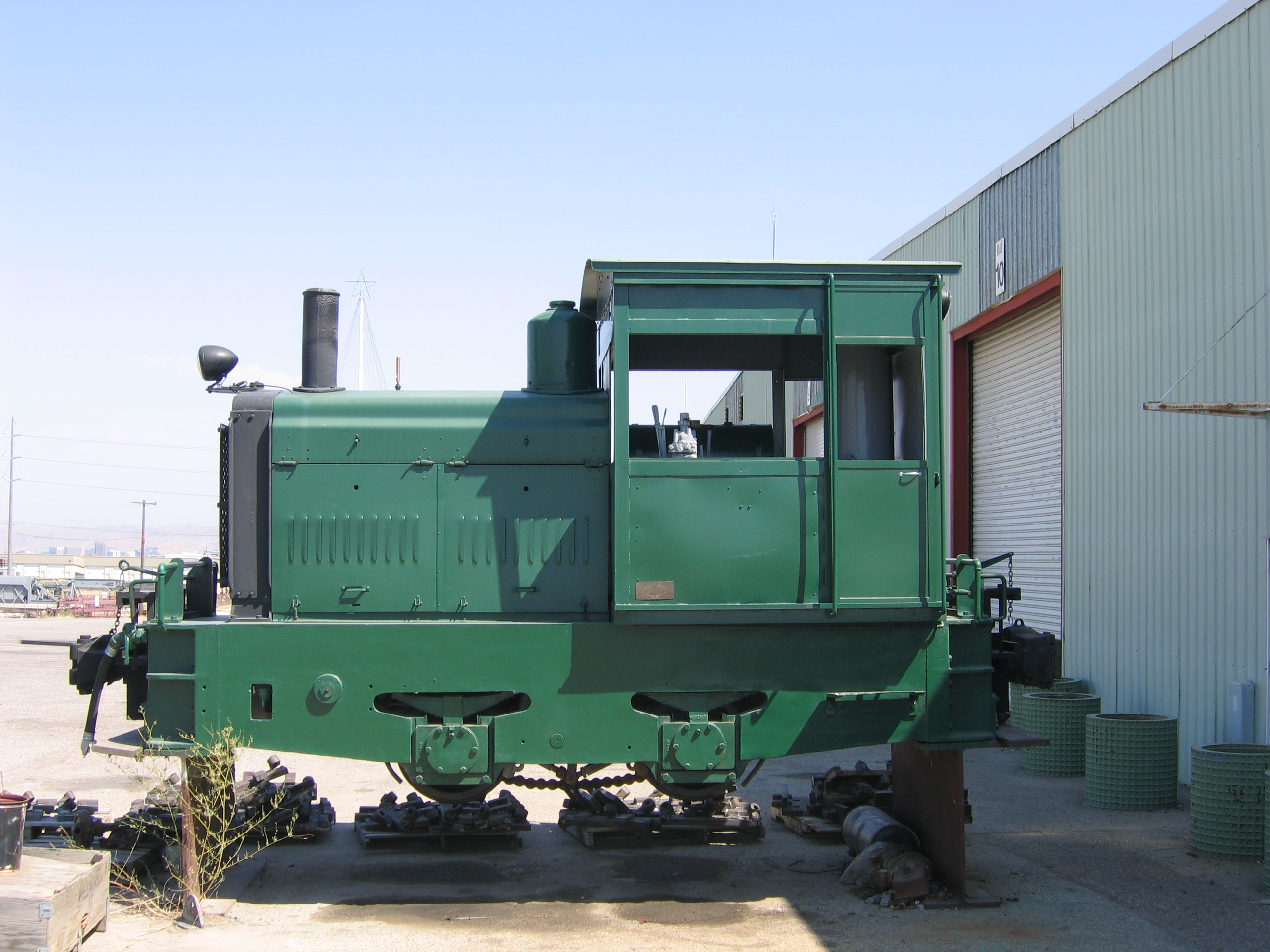

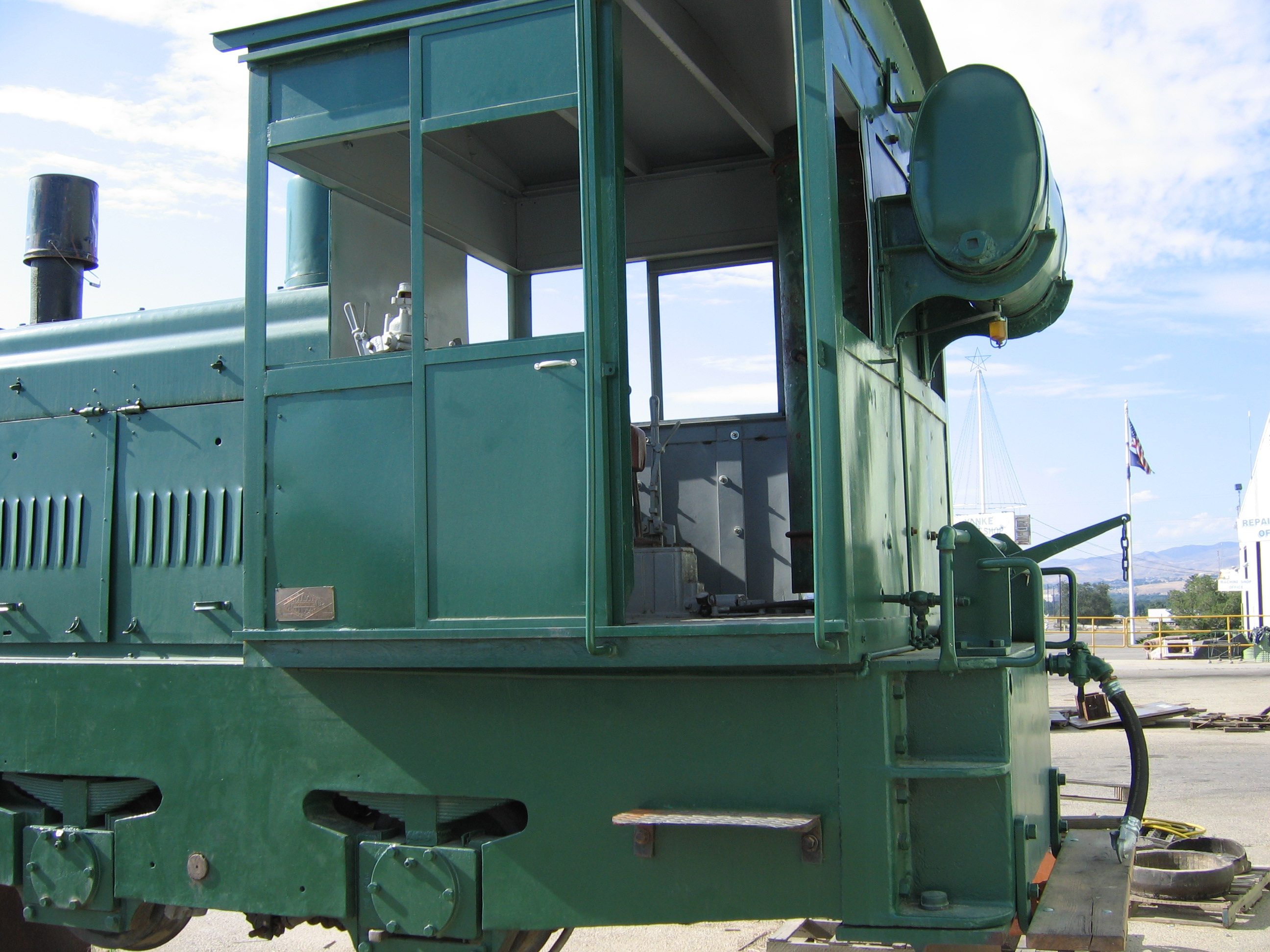

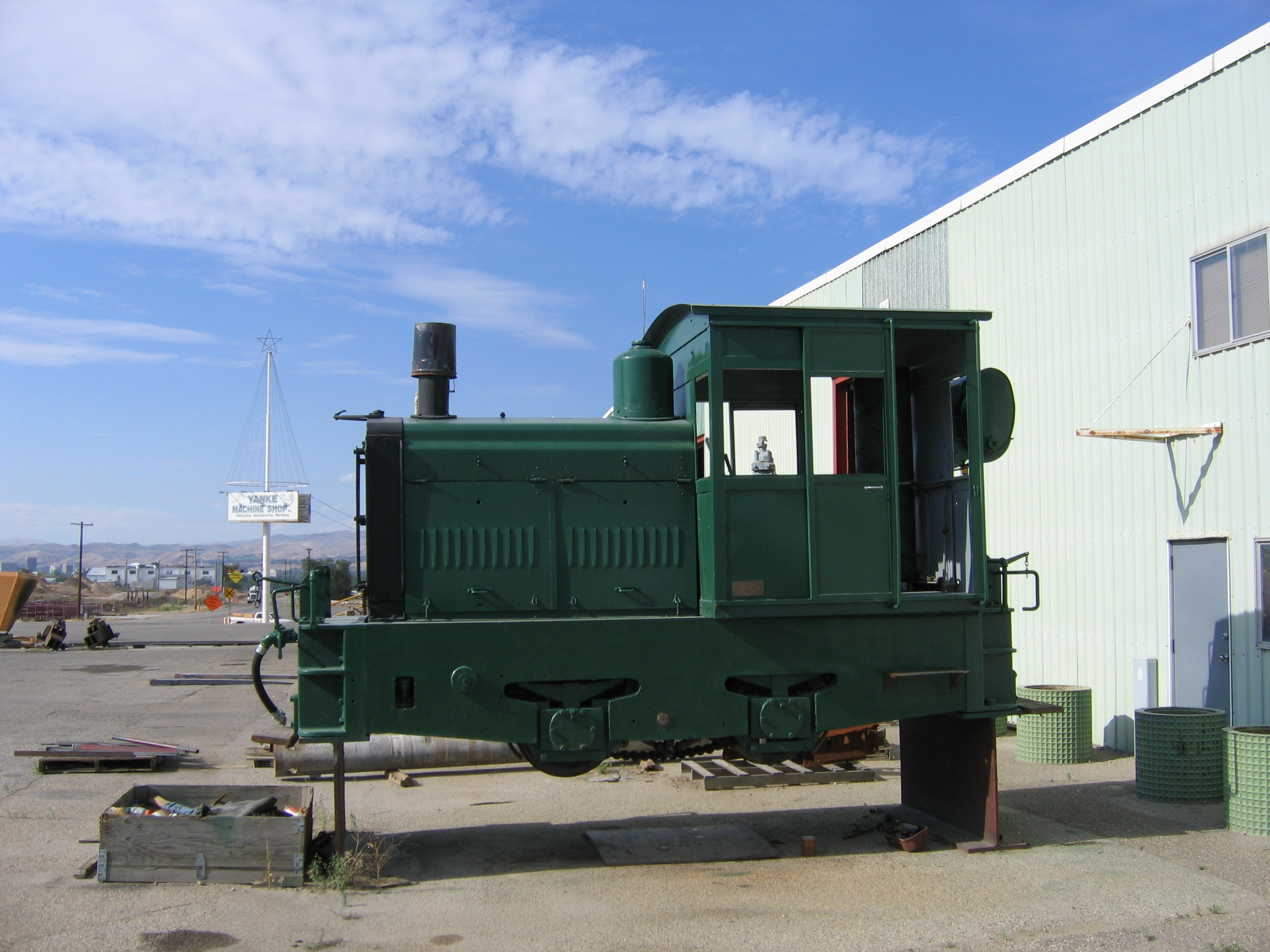

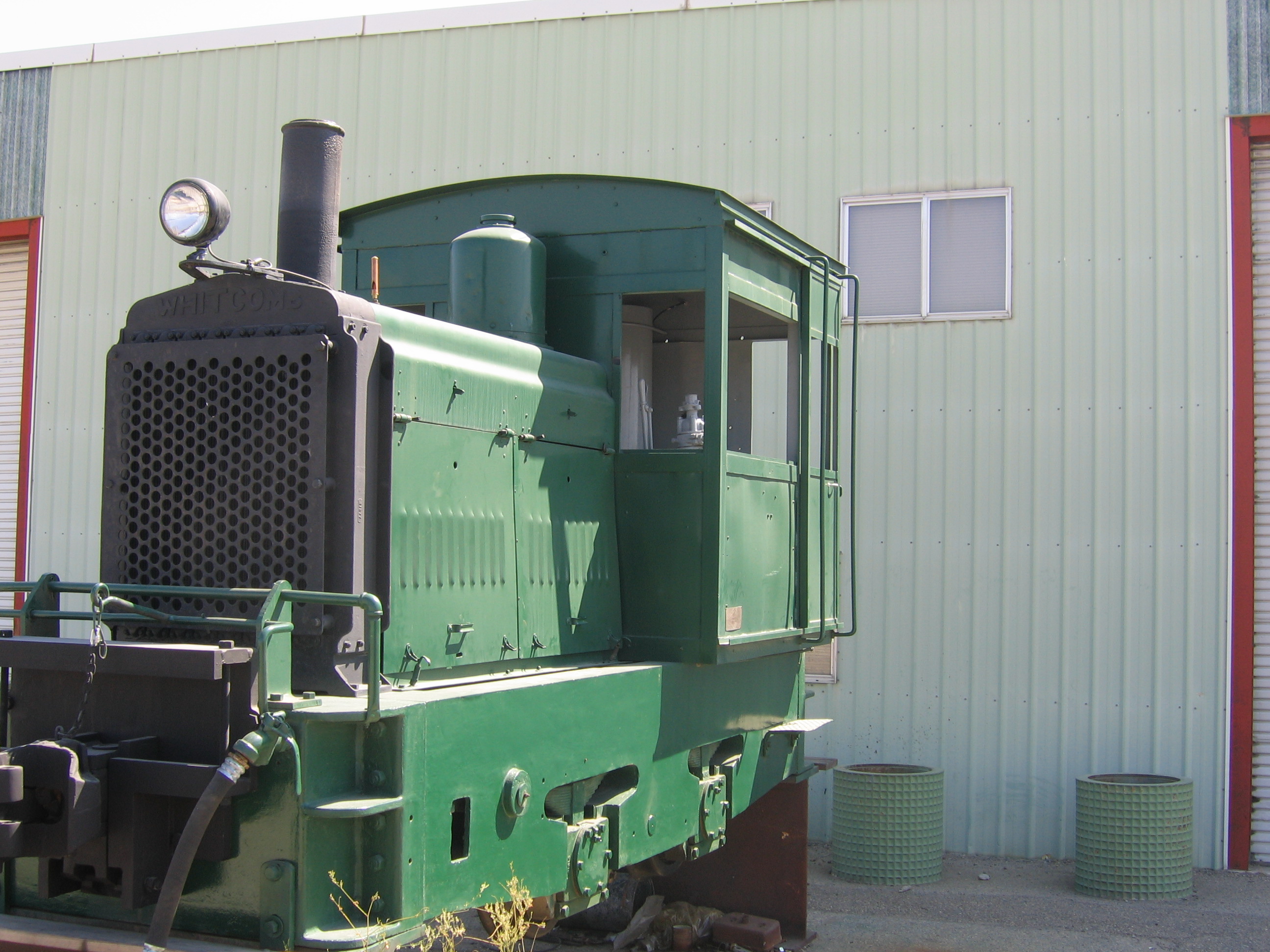

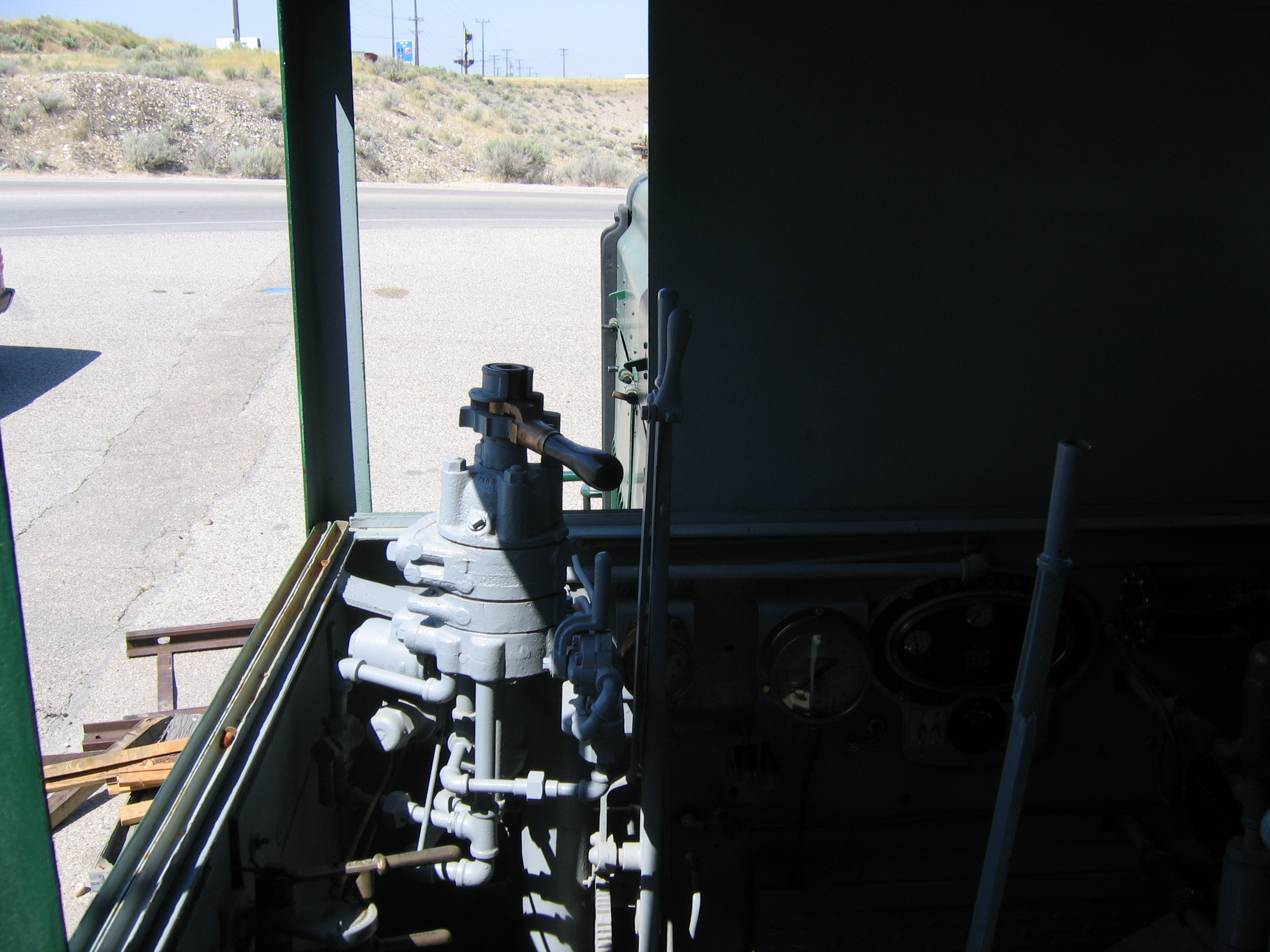

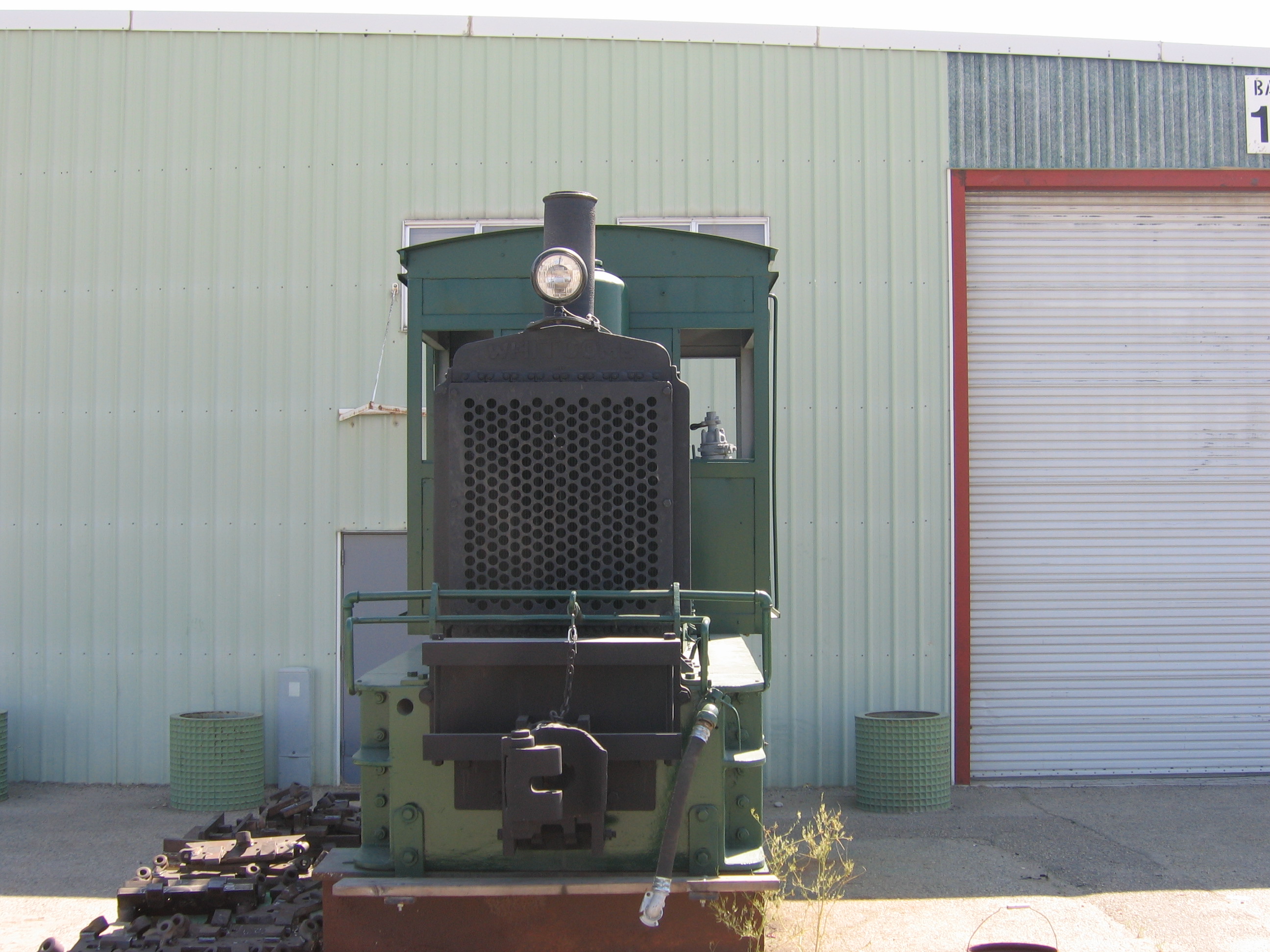

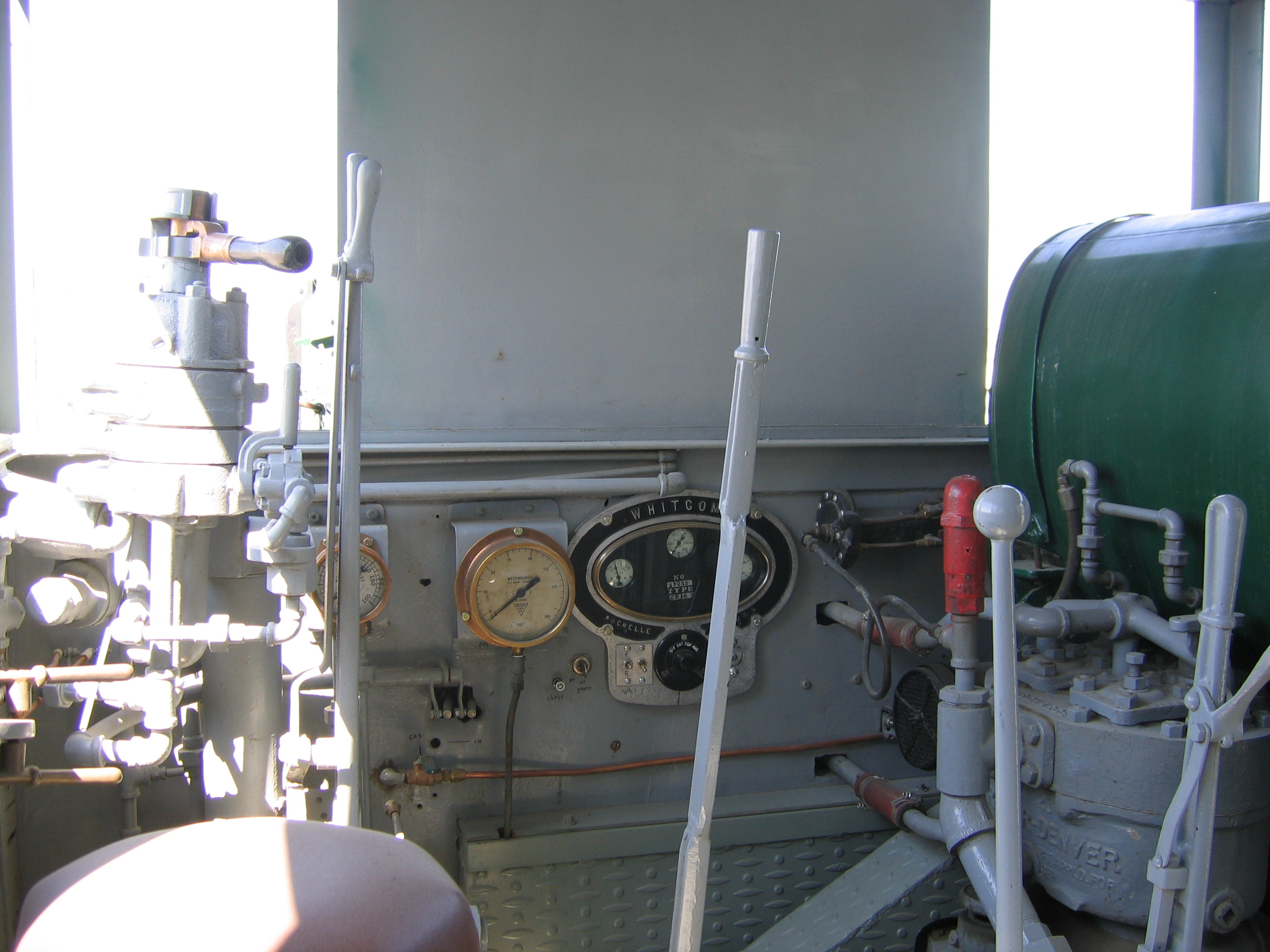

Current photos of #100, taken on August, 2006.  Note new coupler pockets and finished interior also!

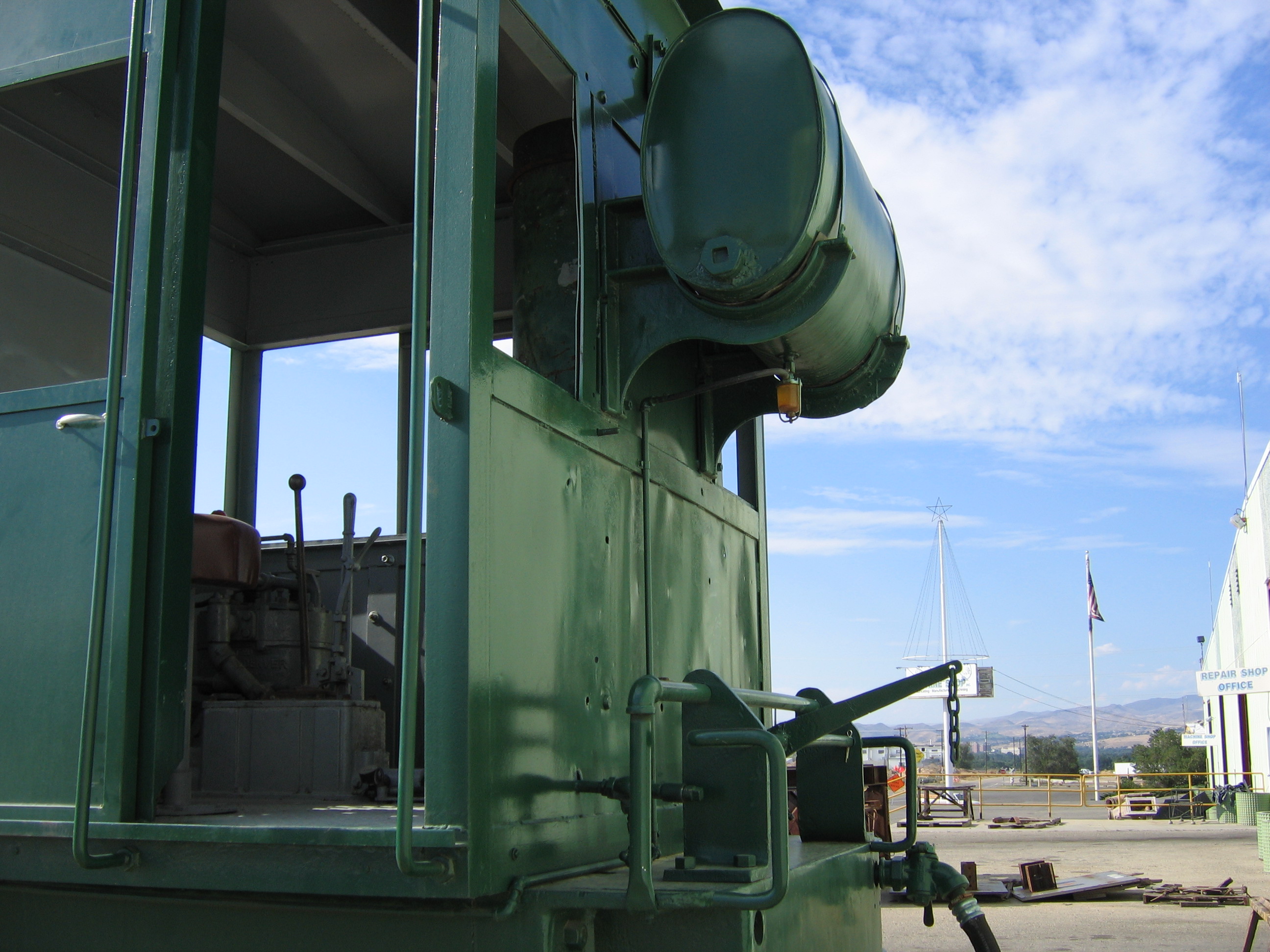

Photos of #100 on 8/9/2005

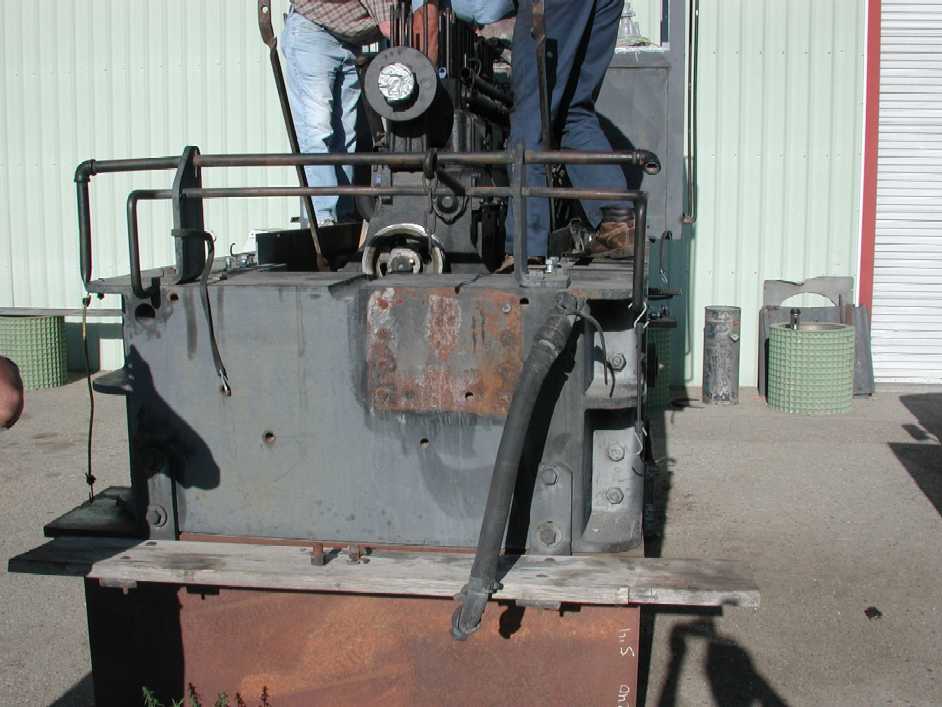

Sumpter Valley #100 restoration team hard at work on August 8th 2002.


Below is a photo that was located of the #100 in Baker City in 1931 while still in service for the Sumpter Valley Railway:

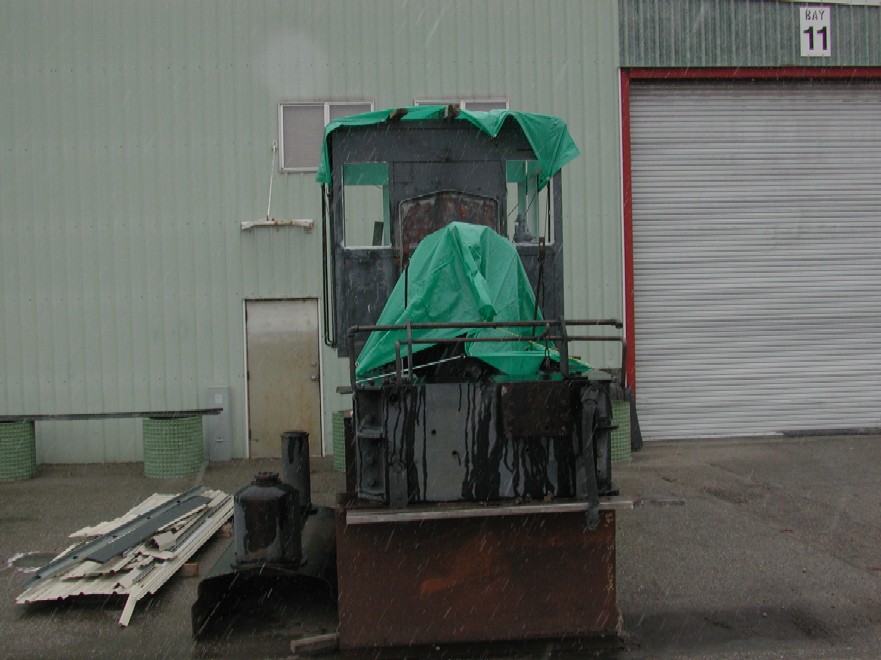

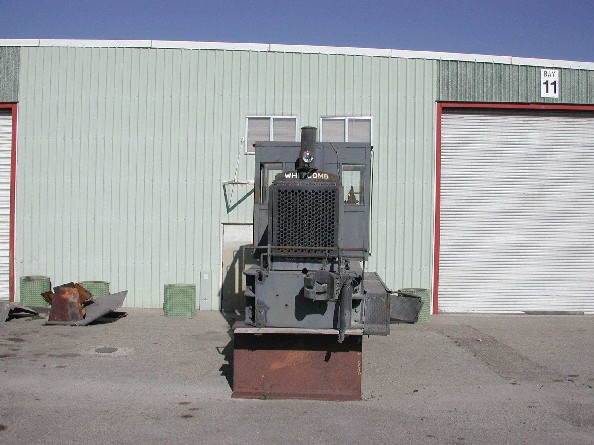

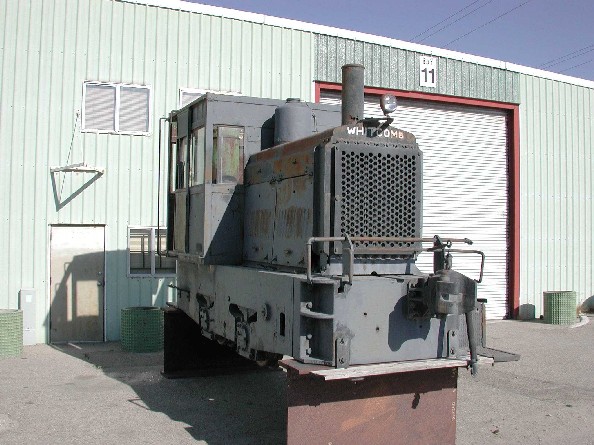

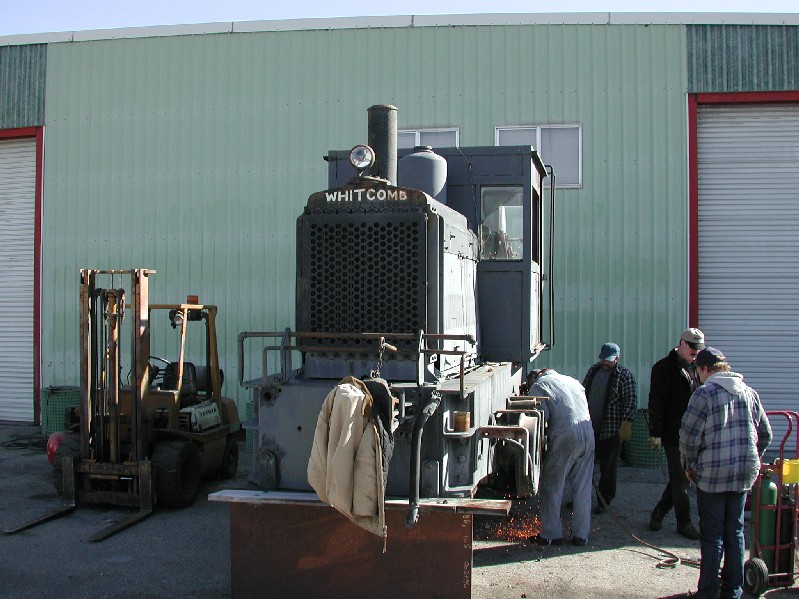

Pictures of SVRY #100 after arrival at Yanke machine shop in Boise, Idaho.

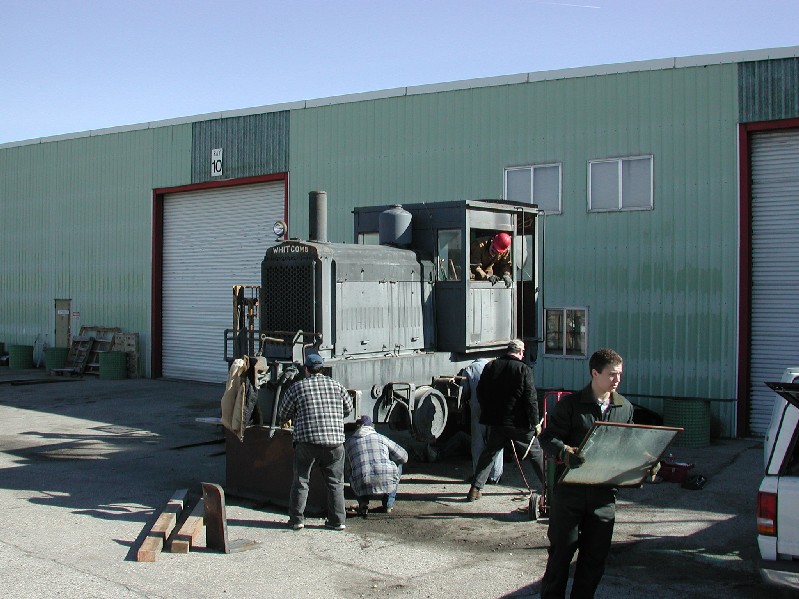

Pictures of the first work party:

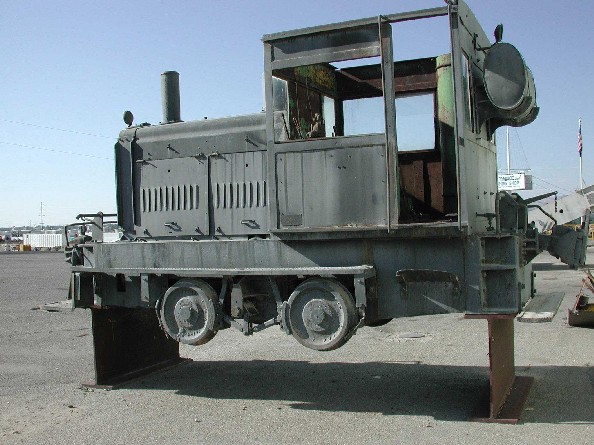

View after removal of add on running board


Front view of locomotive after removing add on running board


Removal of brake rigging for outside wheel sets

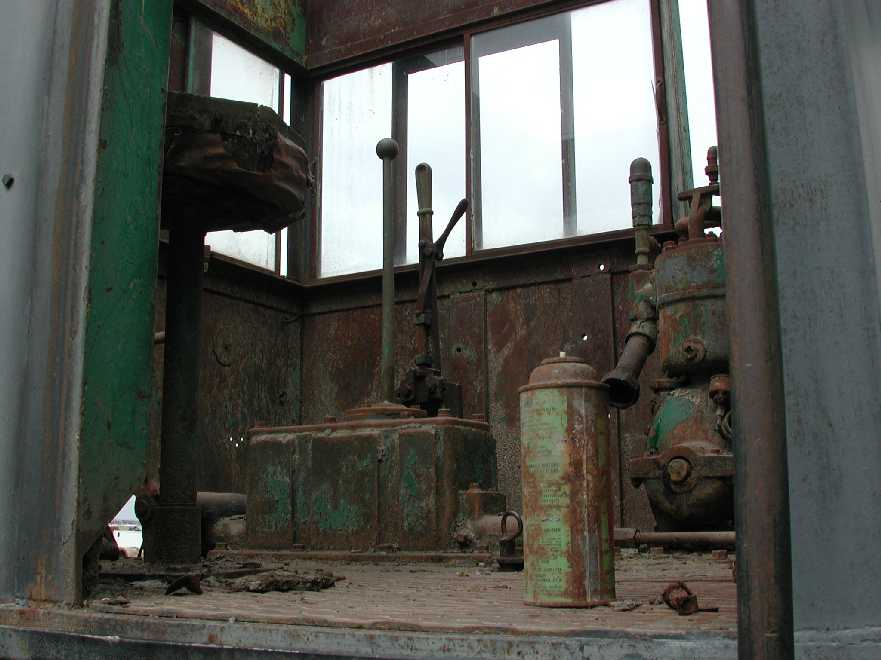

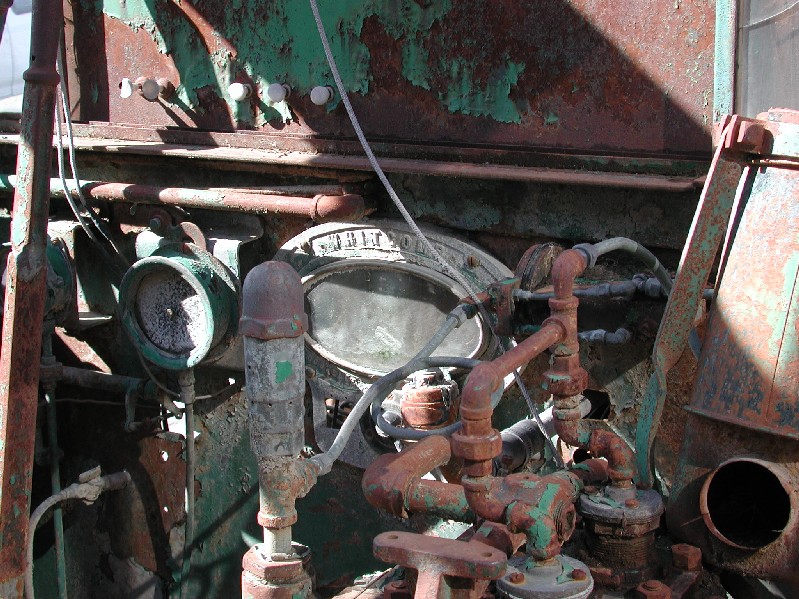

Inside view of Cab


Another inside view of the Cab

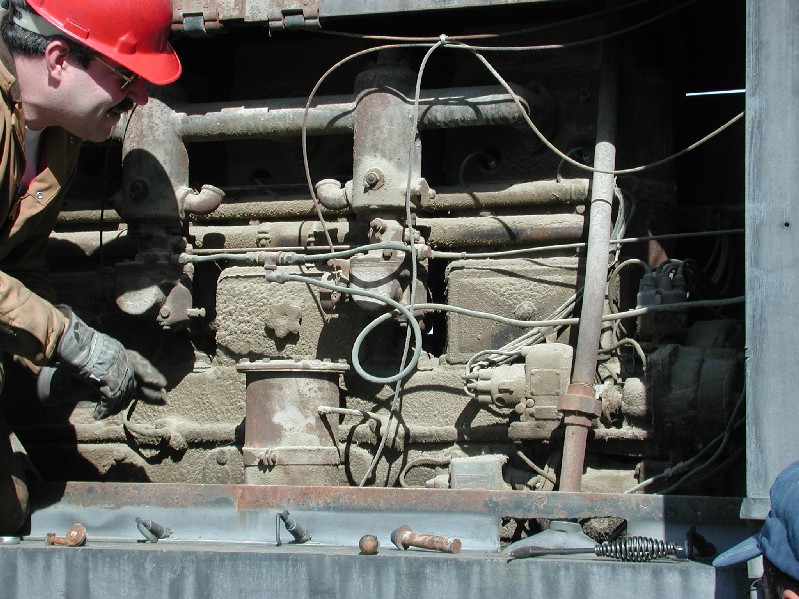

View of the six cylinder climax engine

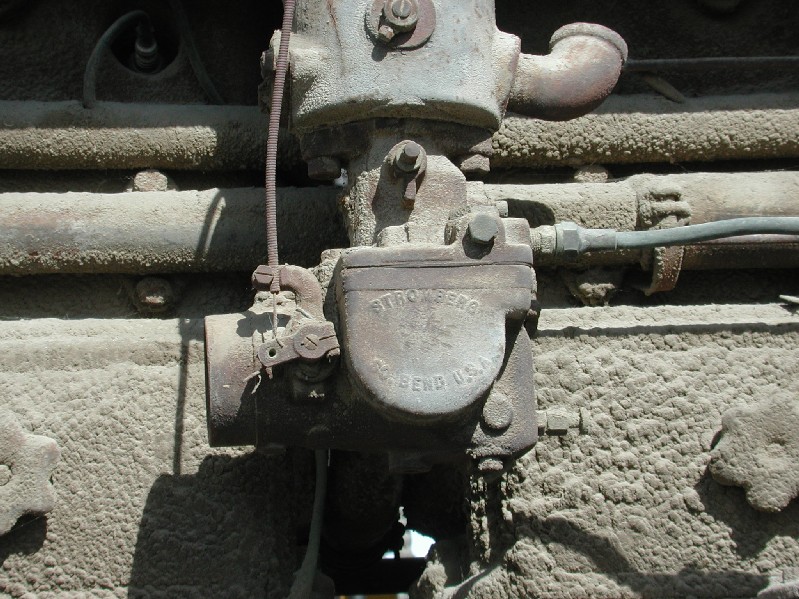

Carburetor on engine

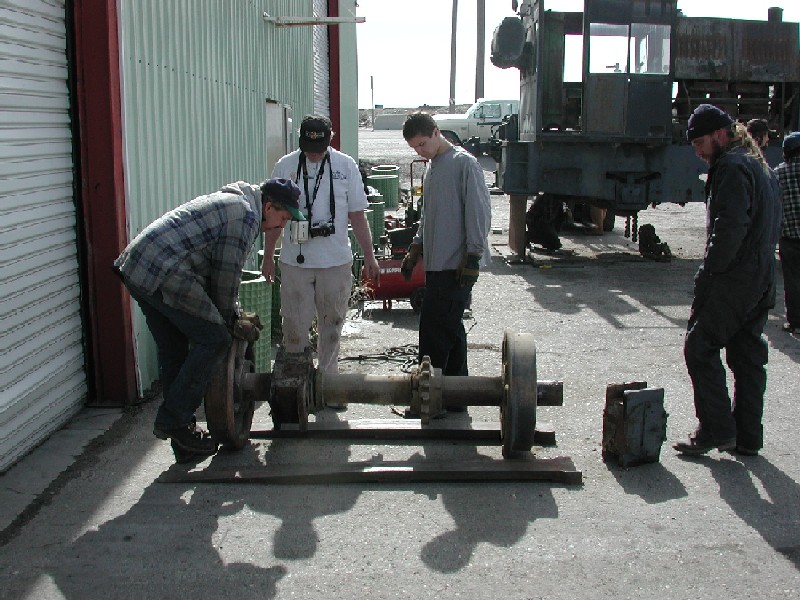

Front axle out


Side view with front axle out


Another side view with front axle out


Underside view of rear axle

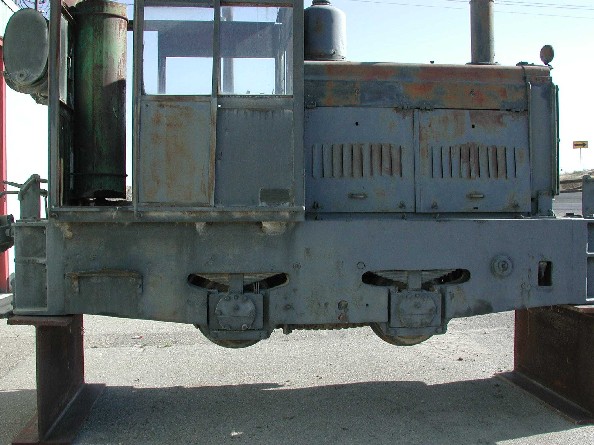

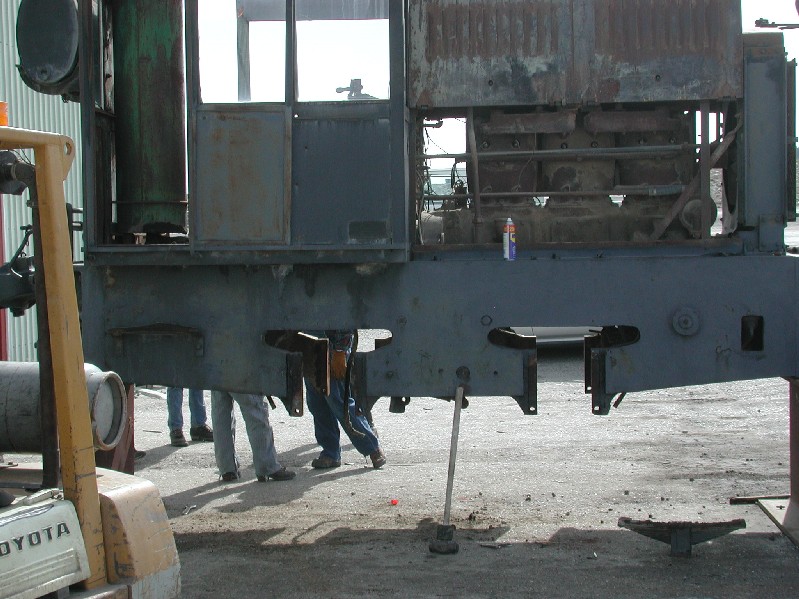

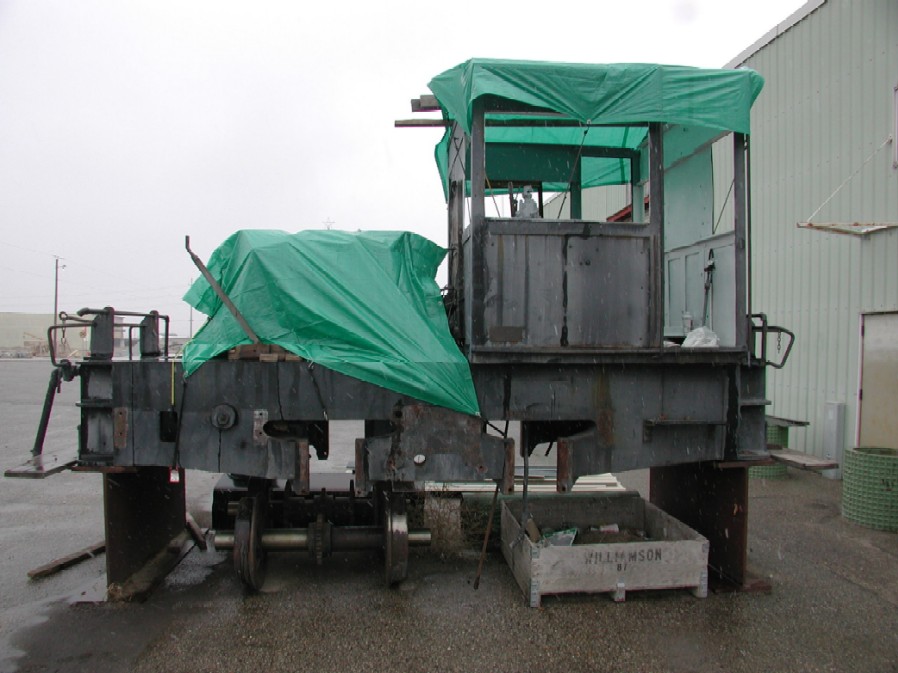

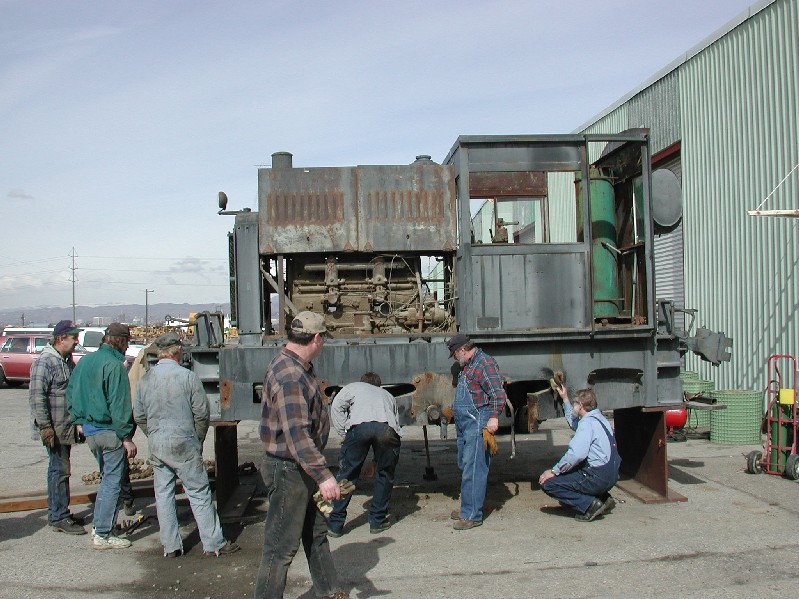

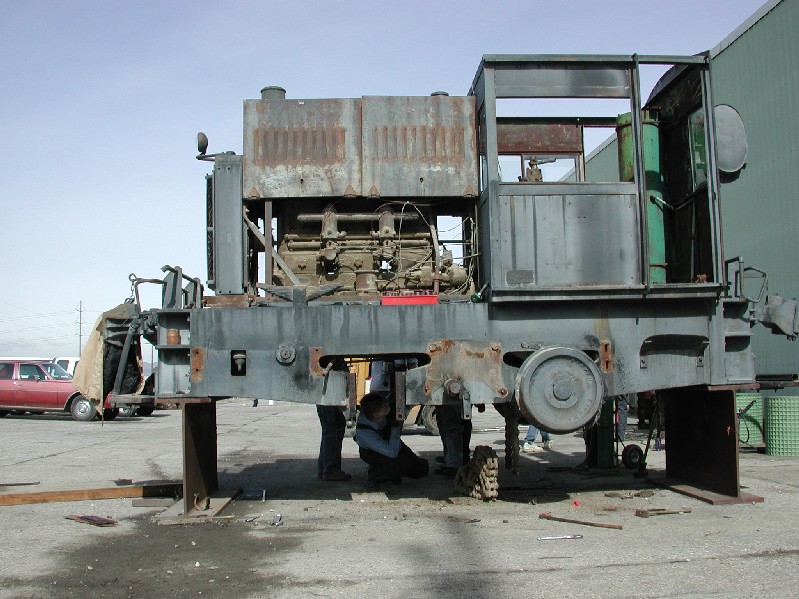

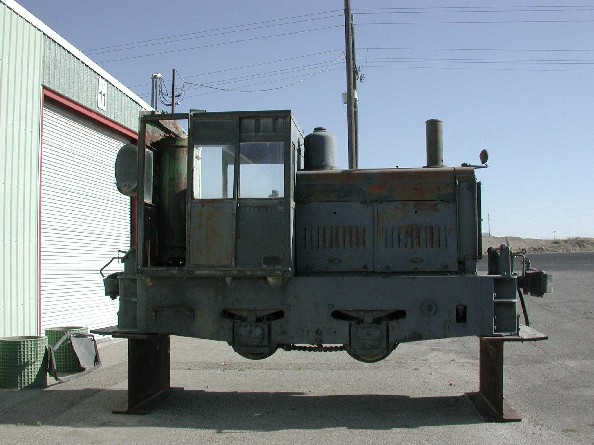

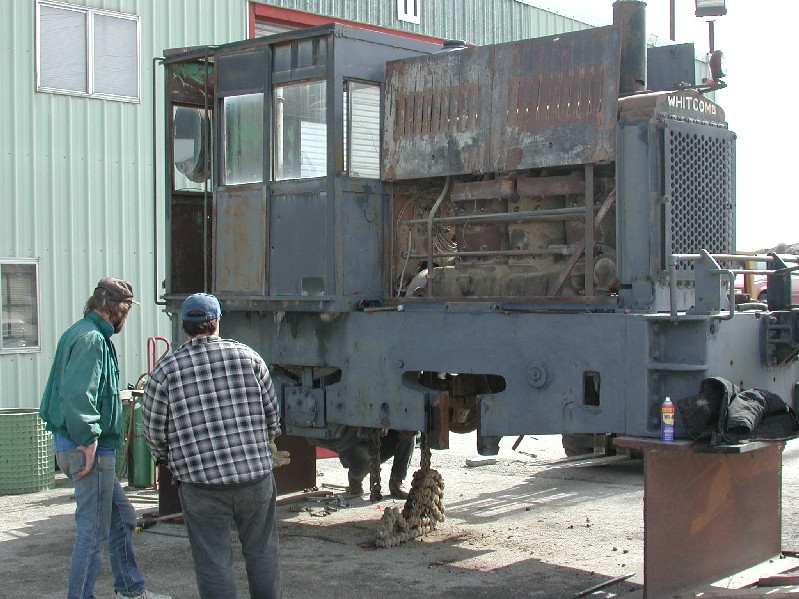

Side view after removal of both axle assemblies


Another side view after removal of both axle assemblies

Below are some pictures of the 2nd work party held on March 17, 2001 - Work performed was general clean up of engine/cab, draining of oil, and draining of transmission fluid.

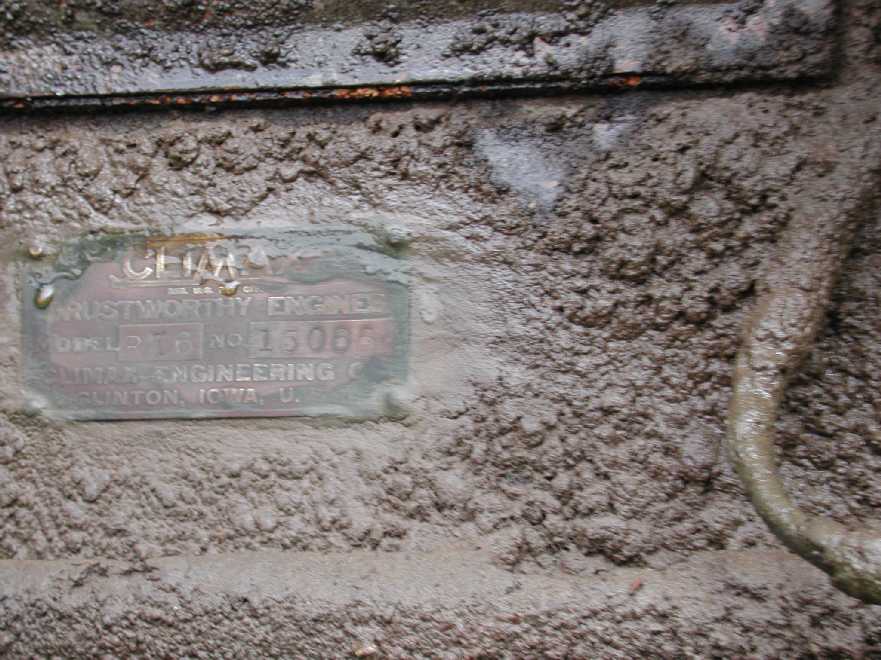

Engine plate on the locomotive engine (R16 Climax engine)


Carburetors wrapped up ready to clean the engine

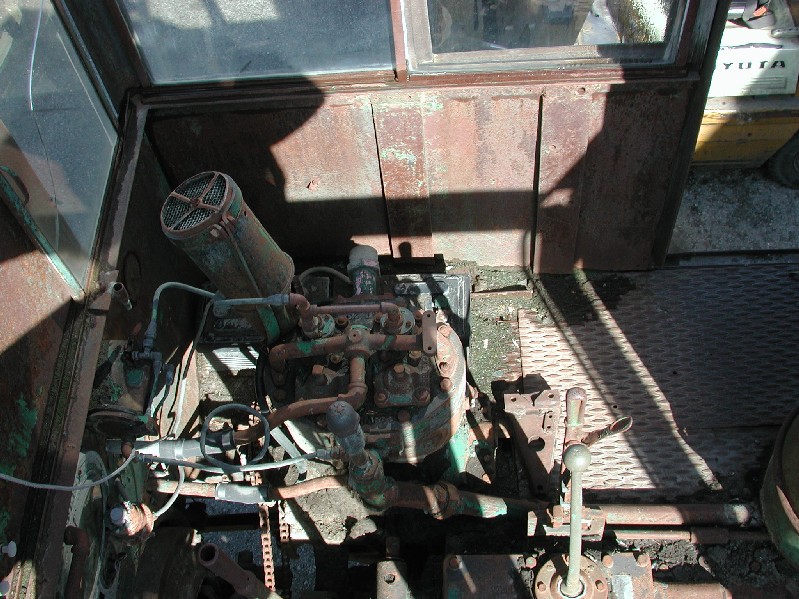

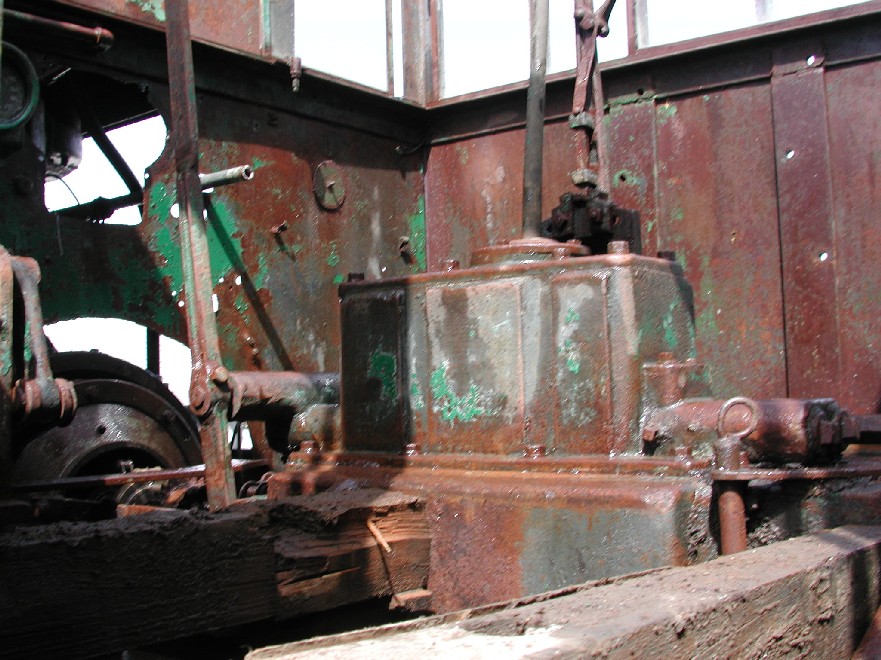

Inside cab view showing the air compressor in center of photo

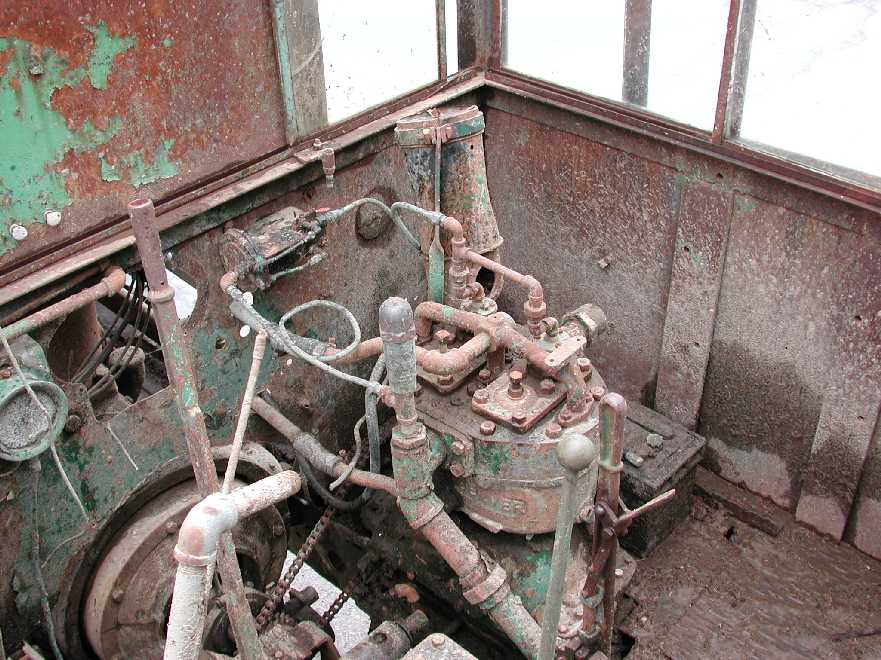

Another view of cab inside view

Below are some pictures of the 3rd work party held on March 31st, 2001 - Work performed was removal of air compressor and main air tank, removal of engine water pump, removal of carburetors, removal of batteries and freeing up the transmission.

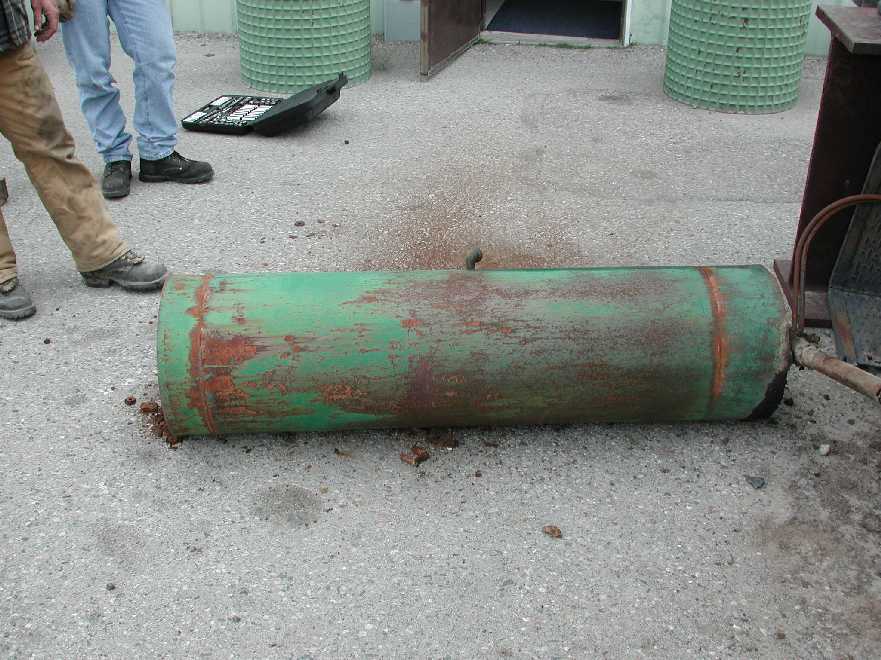

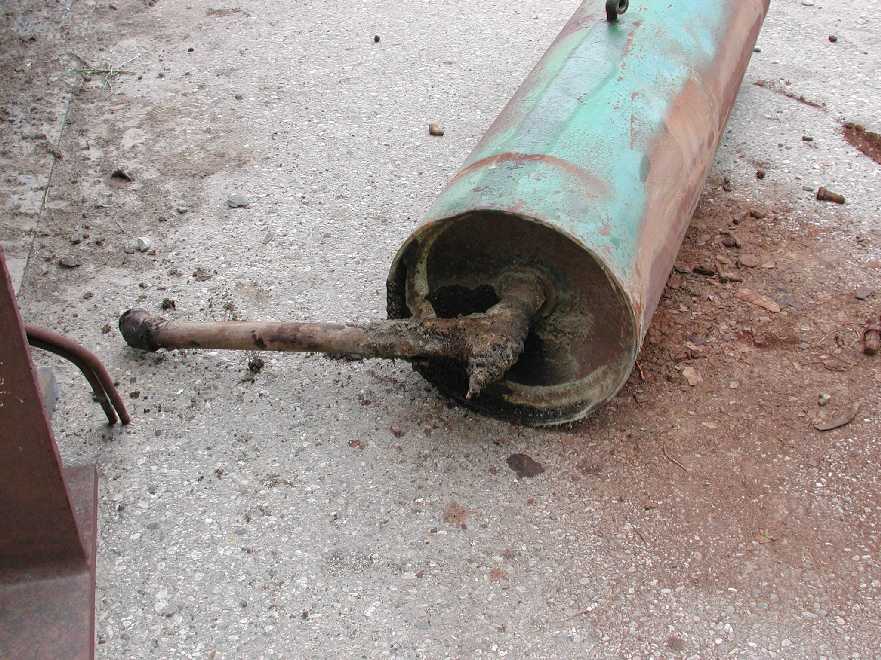

Air tank in cab after removal - it is thought that this was a add on item added by SVRy


Another view of air tank after removal

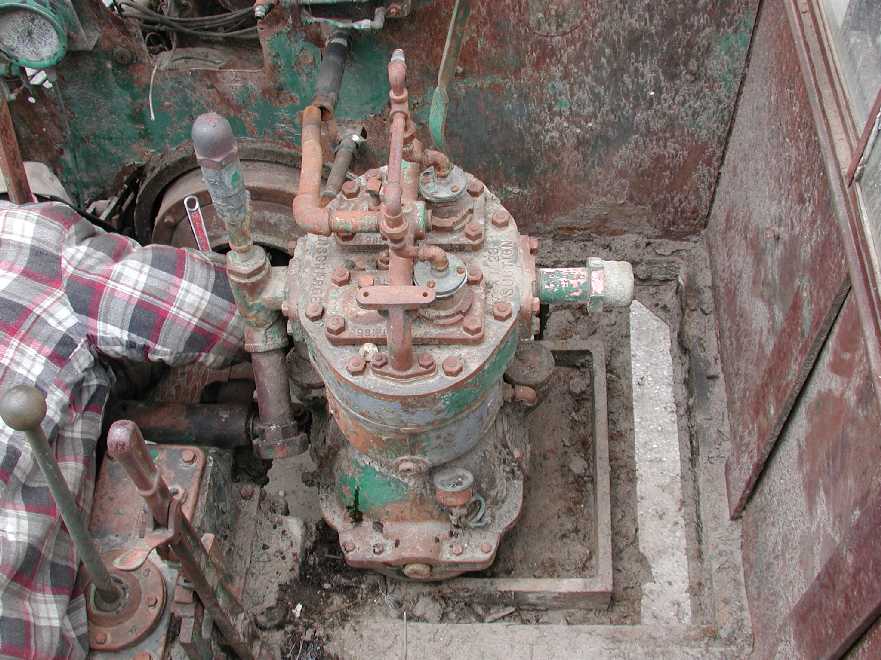

Air compressor in the process of removal - note that the battery box and batteries were removed from the right side of the compressor

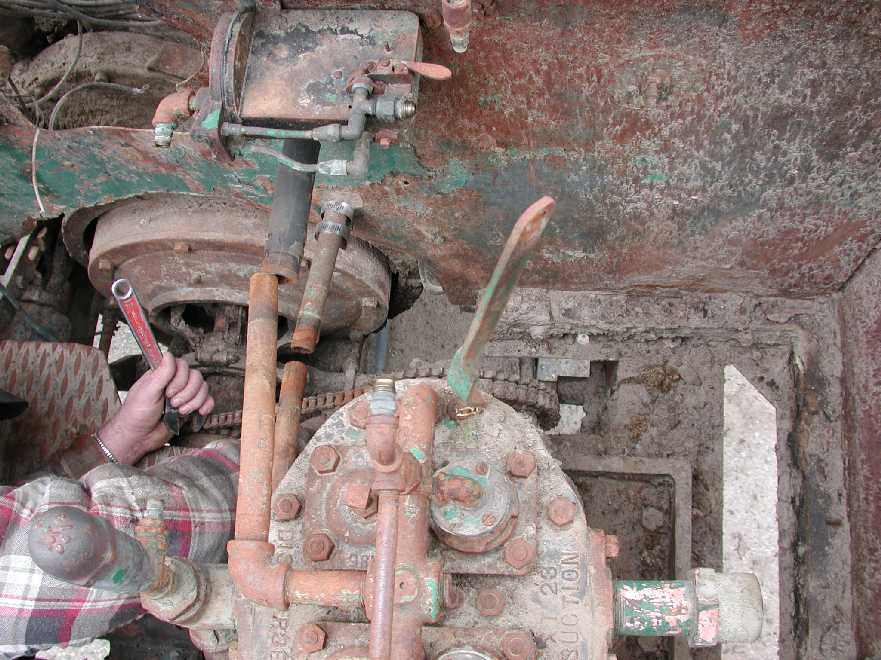

Removing the chain drive to the compressor so that the compressor can be removed for rebuild

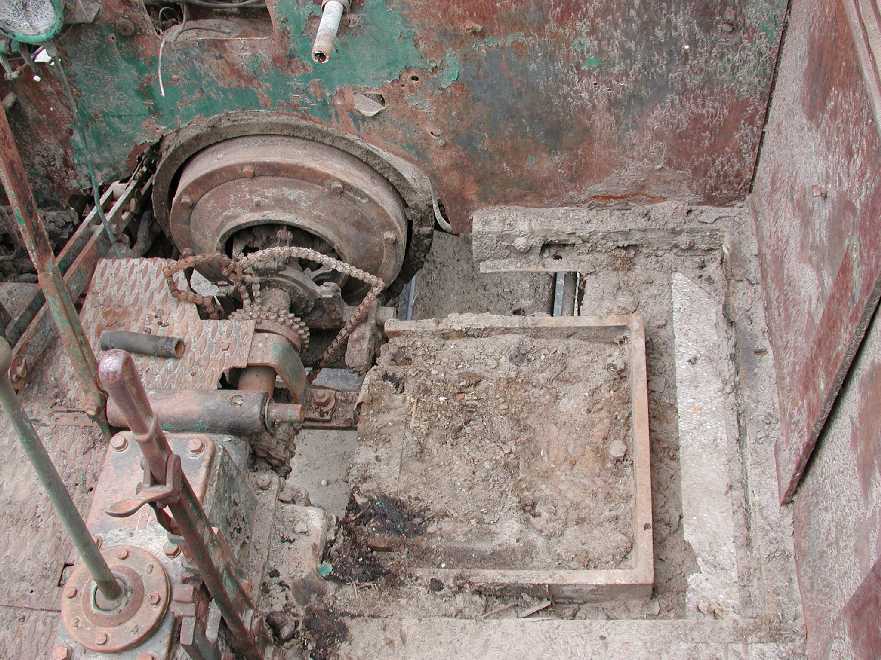

Inside cab view after cleanup and removal of air tank and compressor (the starting fluid can dated from 1963 was found under the air tank)


Air compressor location after removal of compressor - really needs a steam clean job!

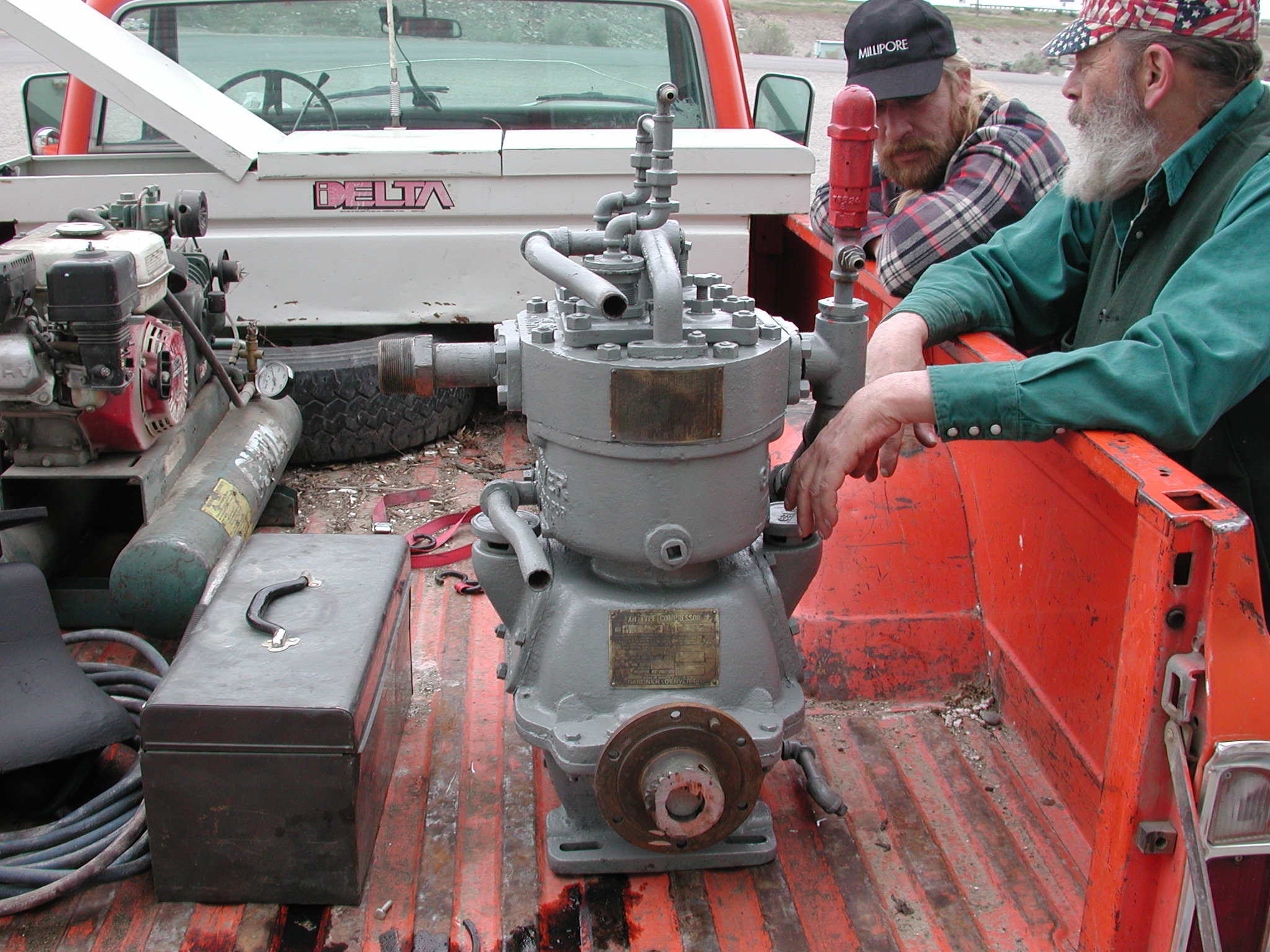

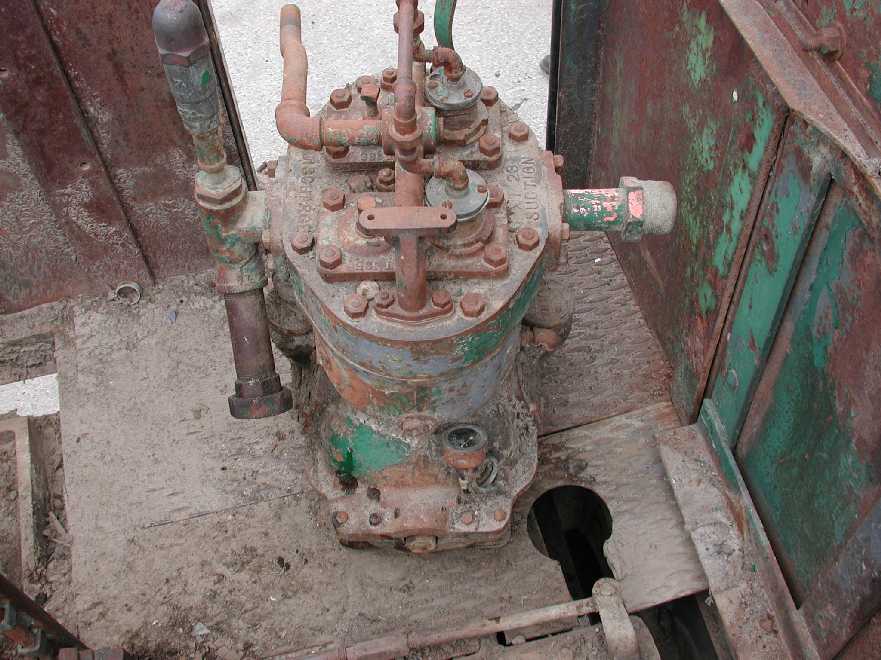

Air compressor ready to be hauled away.  The compressor seemed to be in real good shape and turned over by hand after being removed.

Below are some pictures of the 4th work party held on April 14, 2001 - Work performed was steam cleaning of engine, removing cab floor boards and working on clutch.

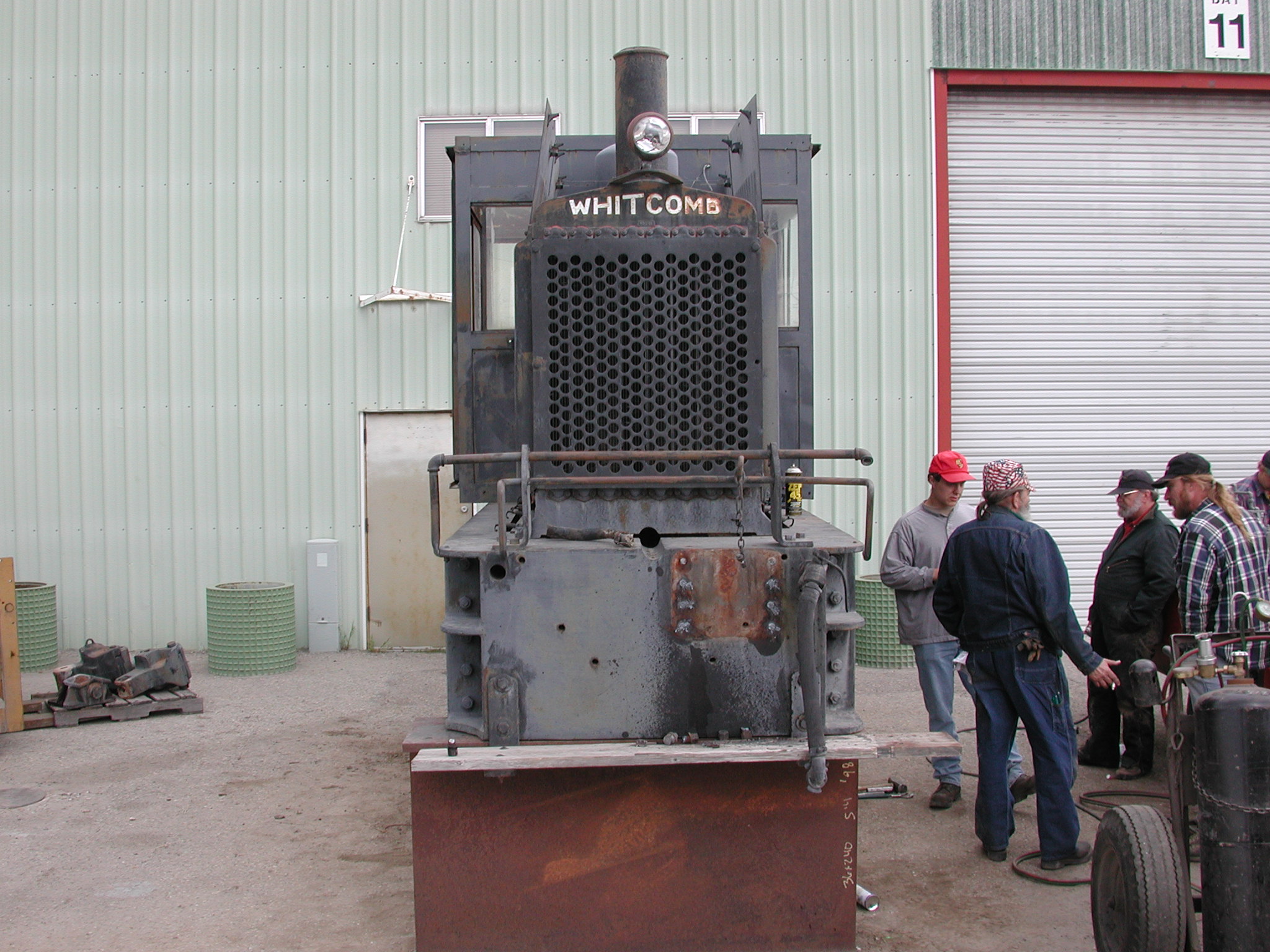

A couple of eager workers!

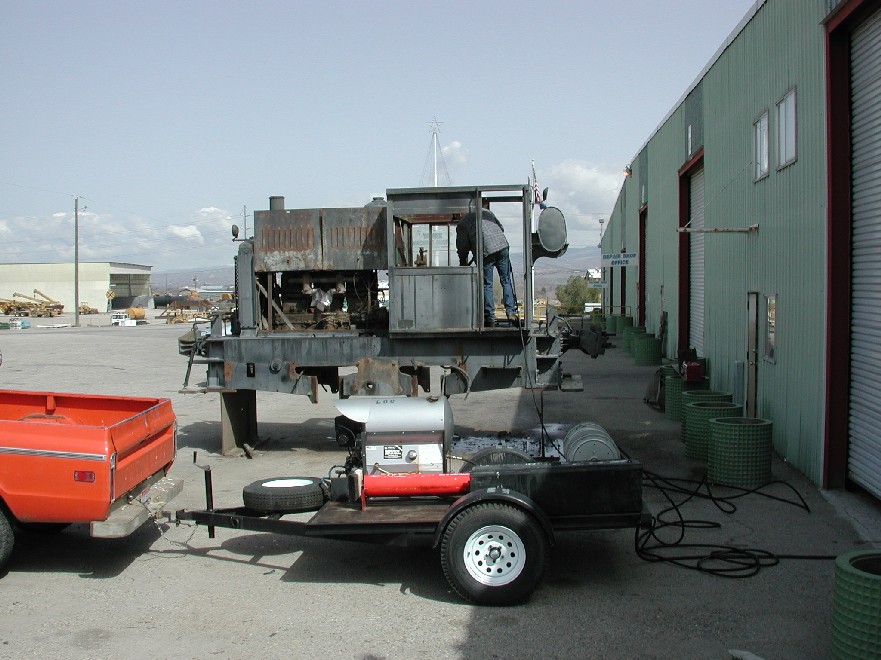

Steam cleaner ready for action

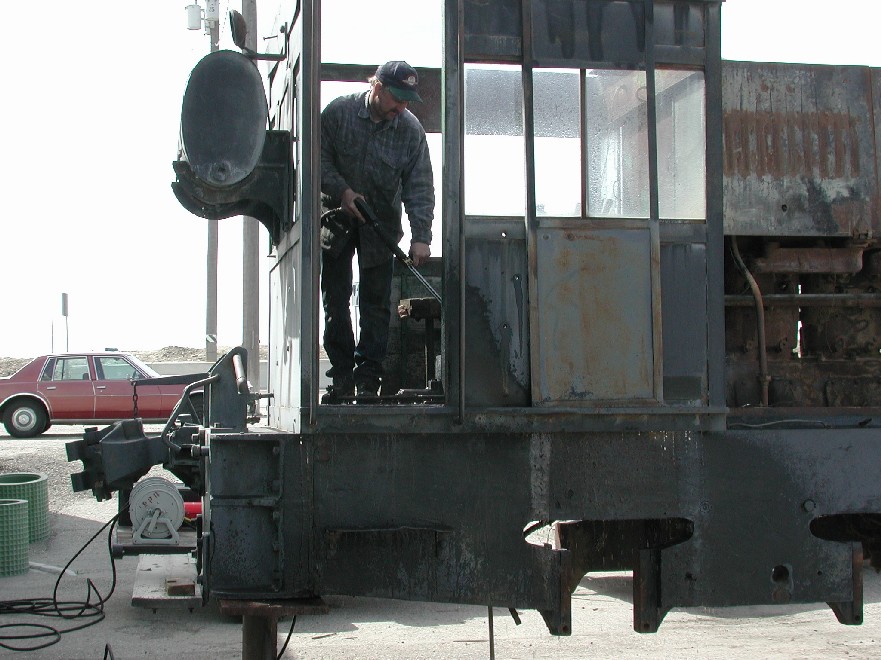

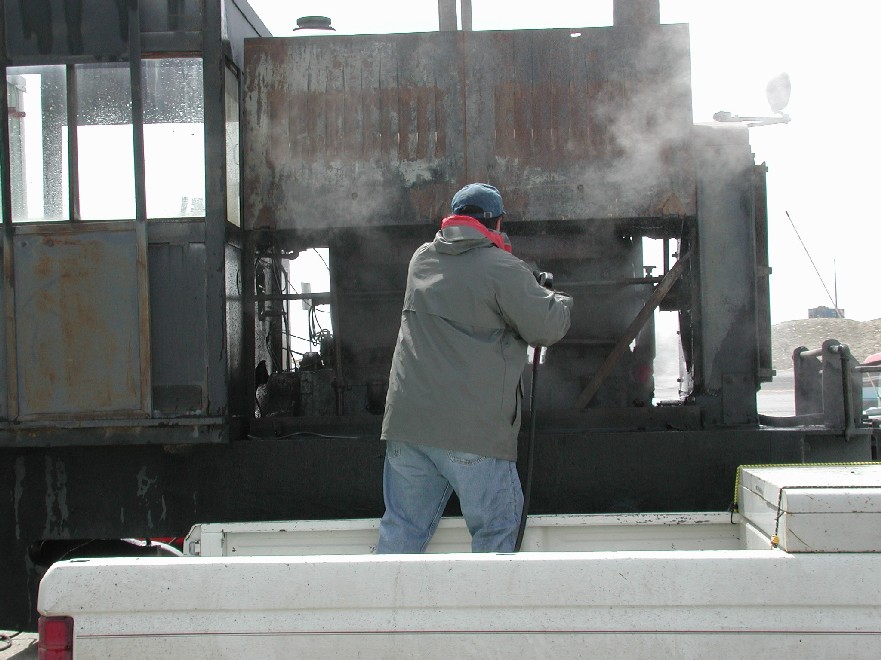

Steam cleaning the cab out.

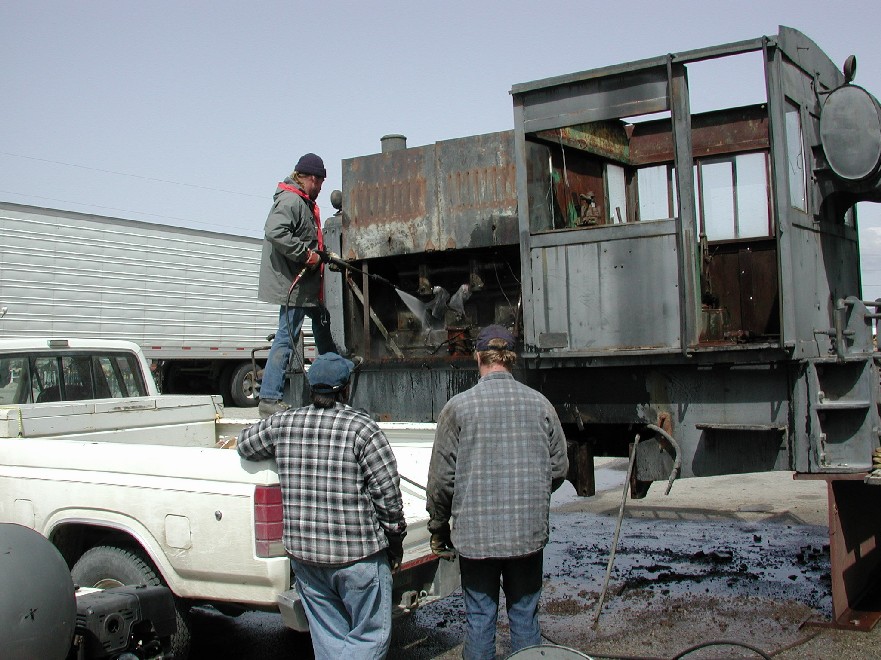

Steam cleaning of engine area.

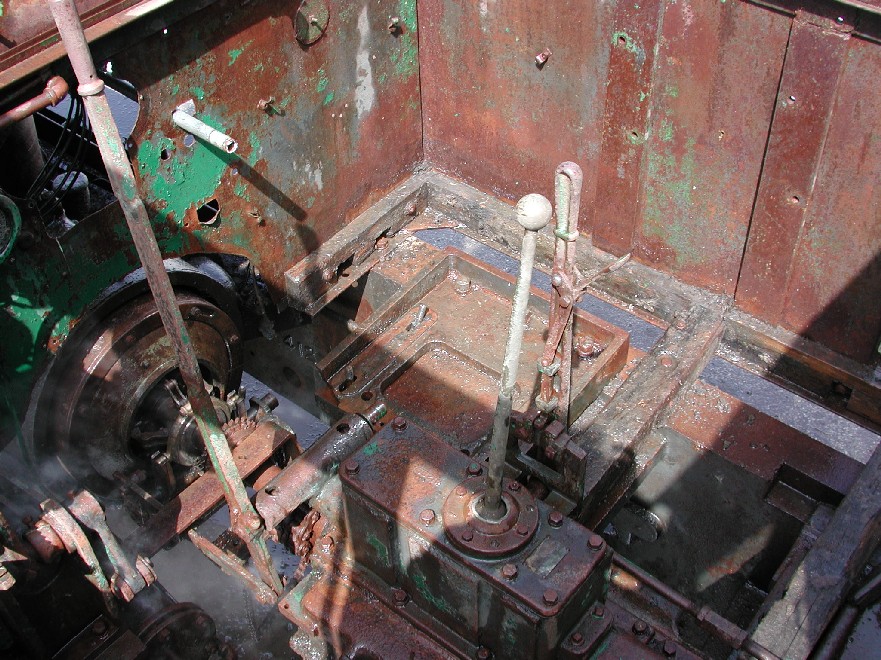

Interior after steam cleaning.


Another view of interior after cleaning.


Further engine compartment cleaning.


A good view of the electrical system on this locomotive.  It looks to be highly modified from the original setup.

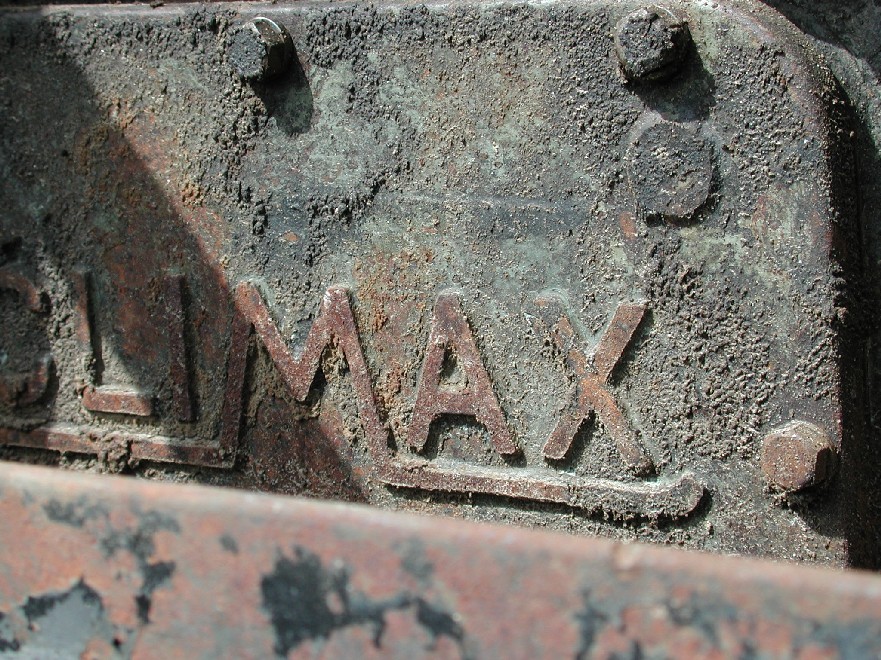

Yes we can now confirm it is a Climax engine!

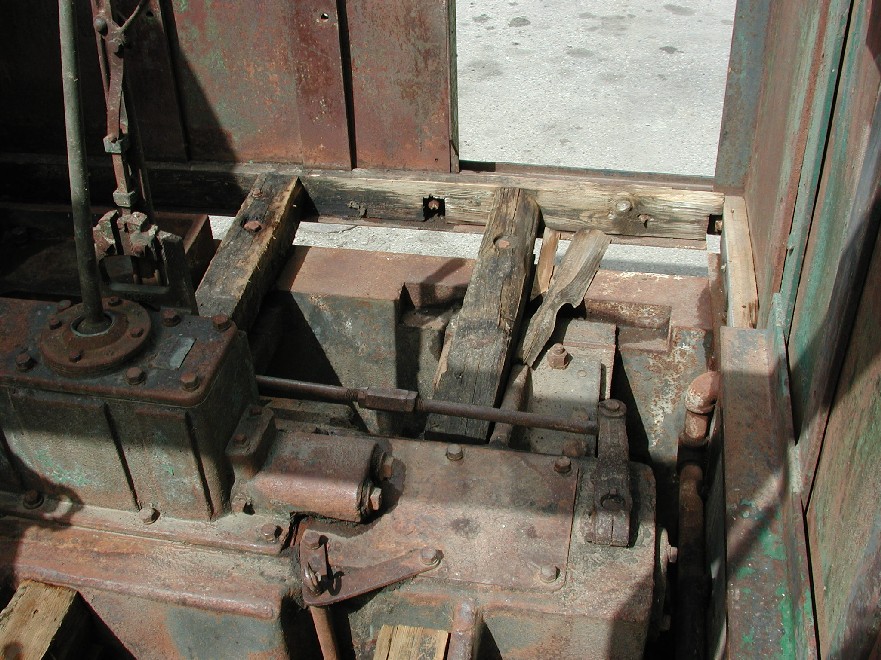

This engine had a wood beam supported cab floor and wood paneled interior, something you do not see in most diesel or gasoline engines!

The most recent work party was held on April 28, 2001 - work performed was further clean up of engine, testing of brake system, and removal of coupler pockets.


Rebuilt and painted air compressor ready for reinstallation in locomotive.


Another view of the rebuilt air compressor.

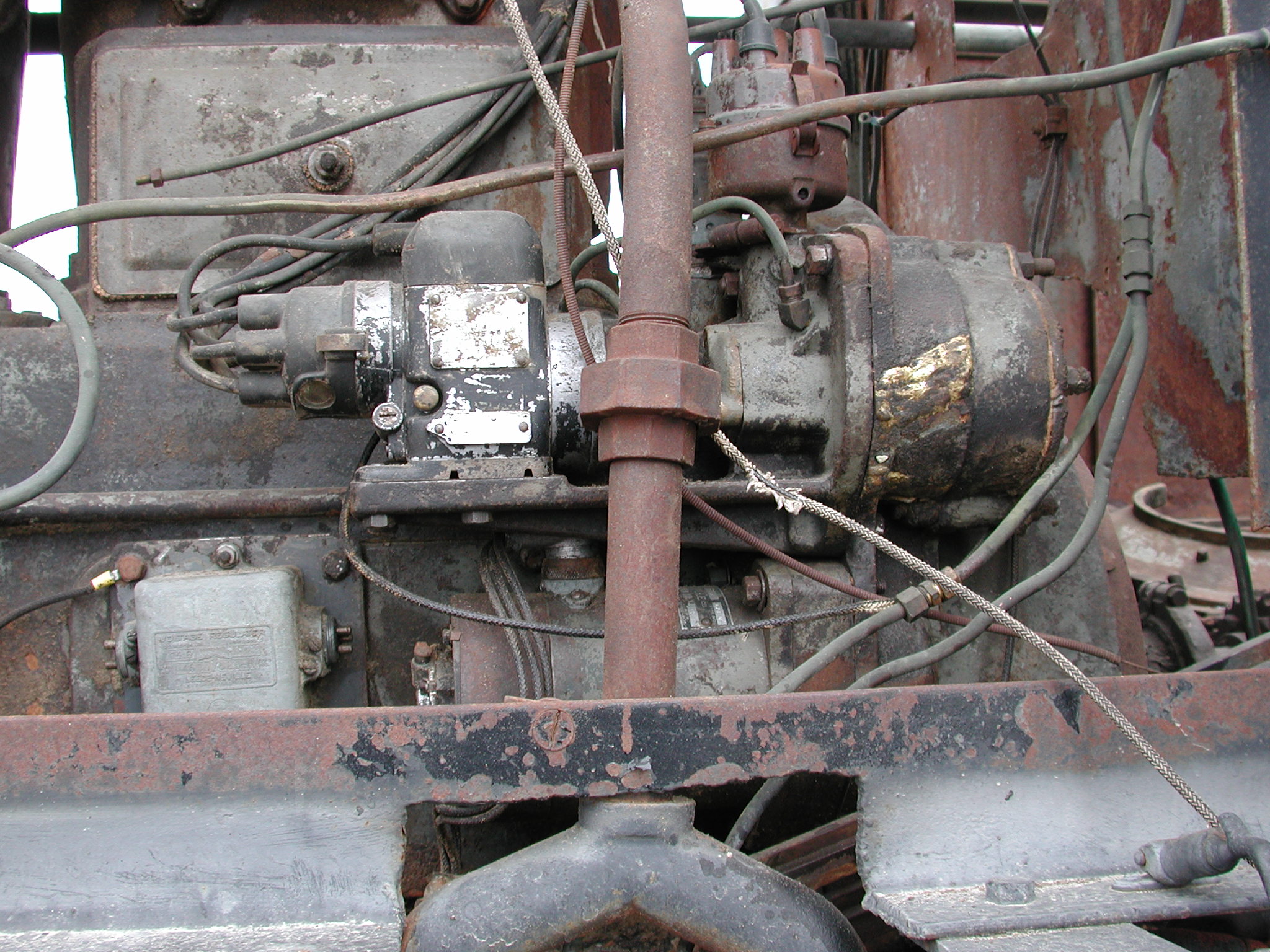

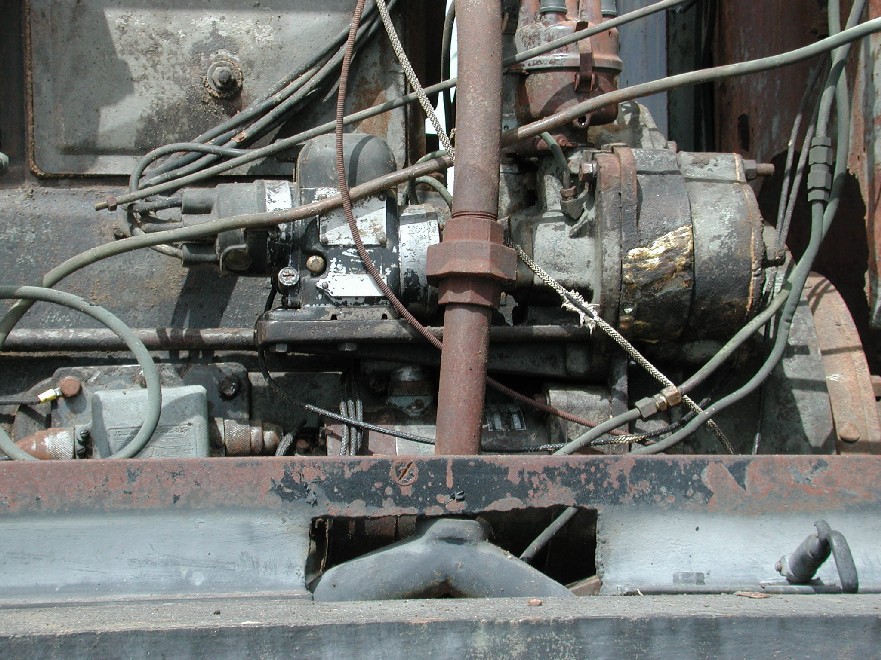

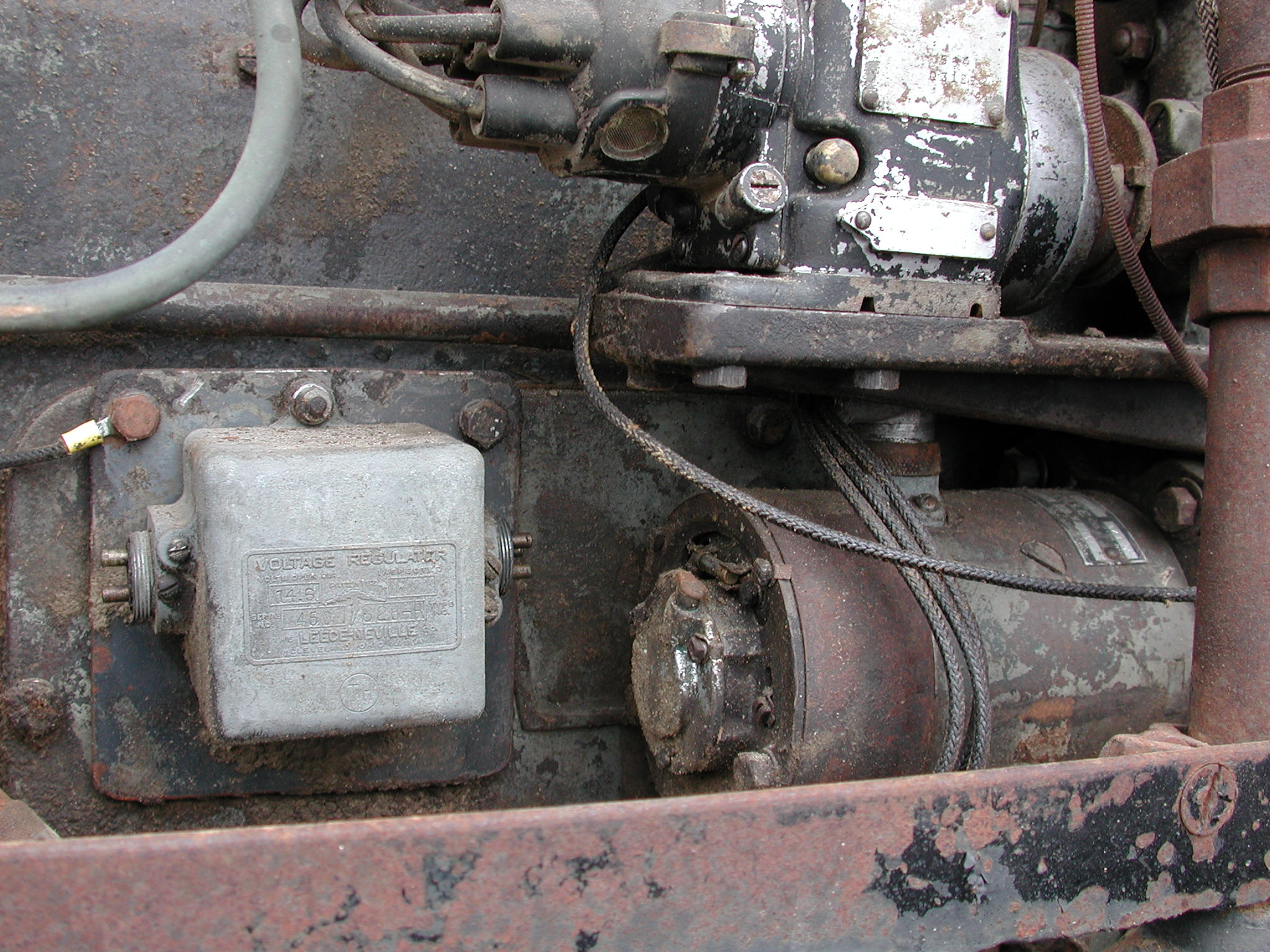

A close up of the electrical ignition system.


Another view of the electrical ignition system.

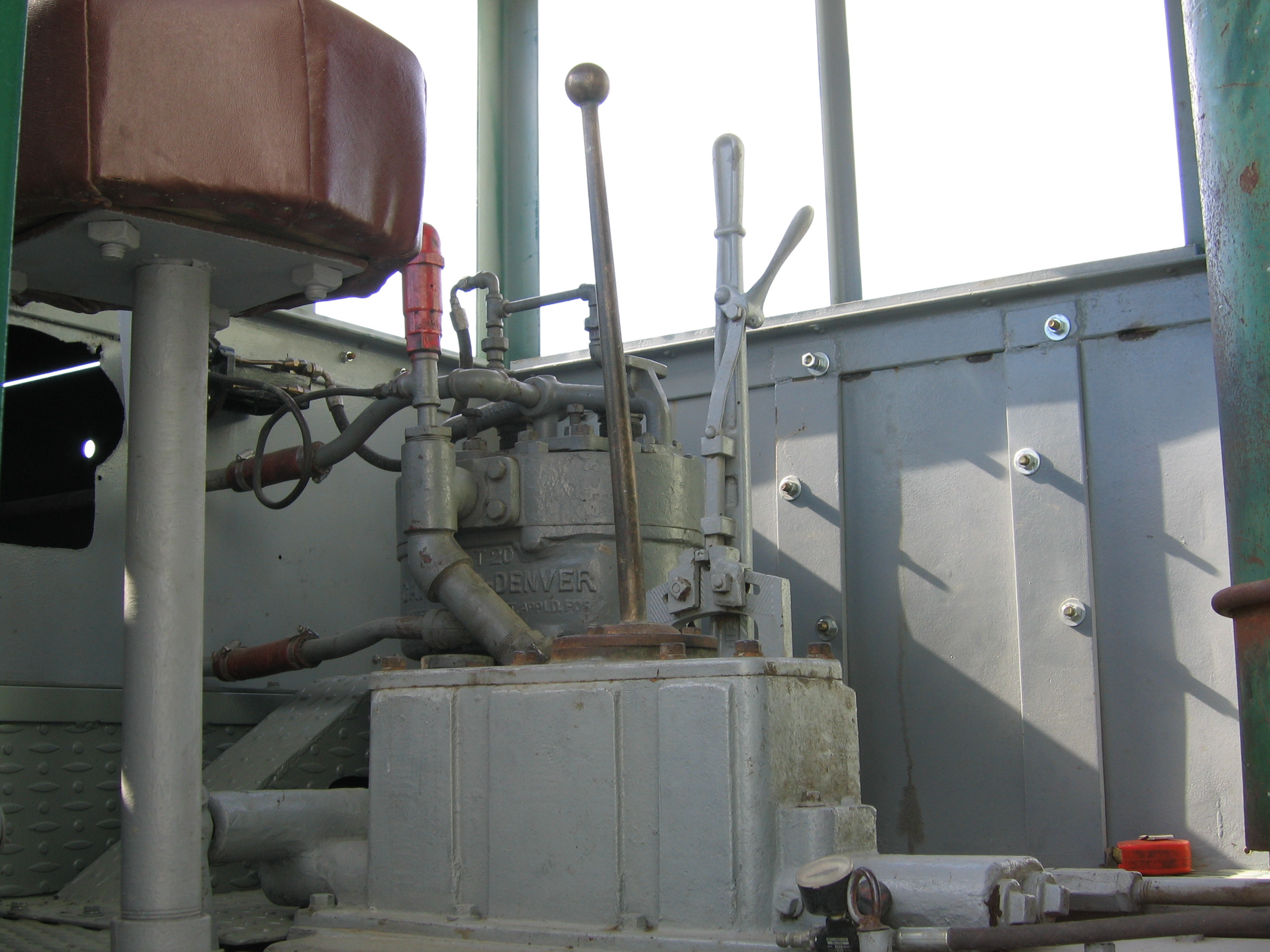

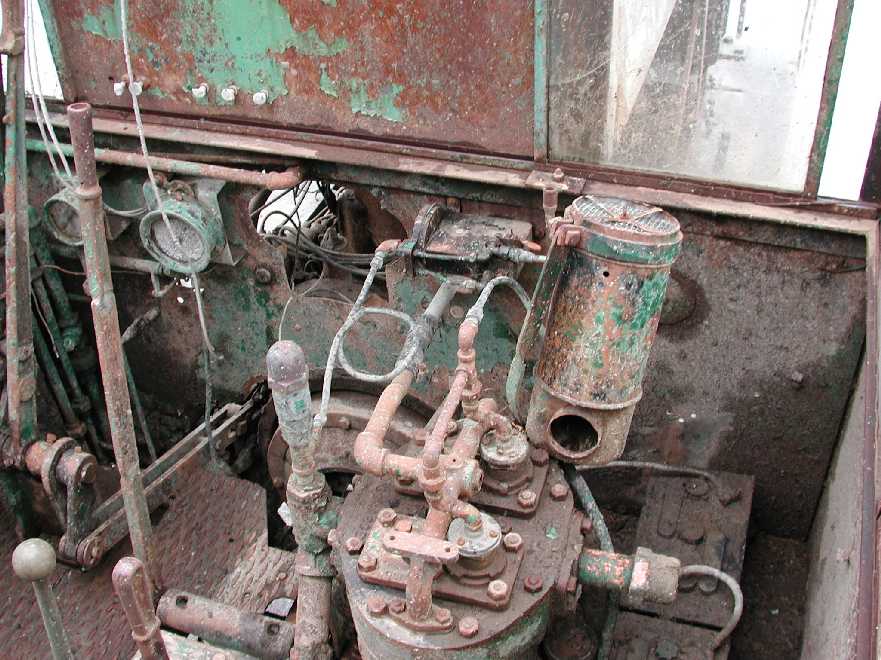

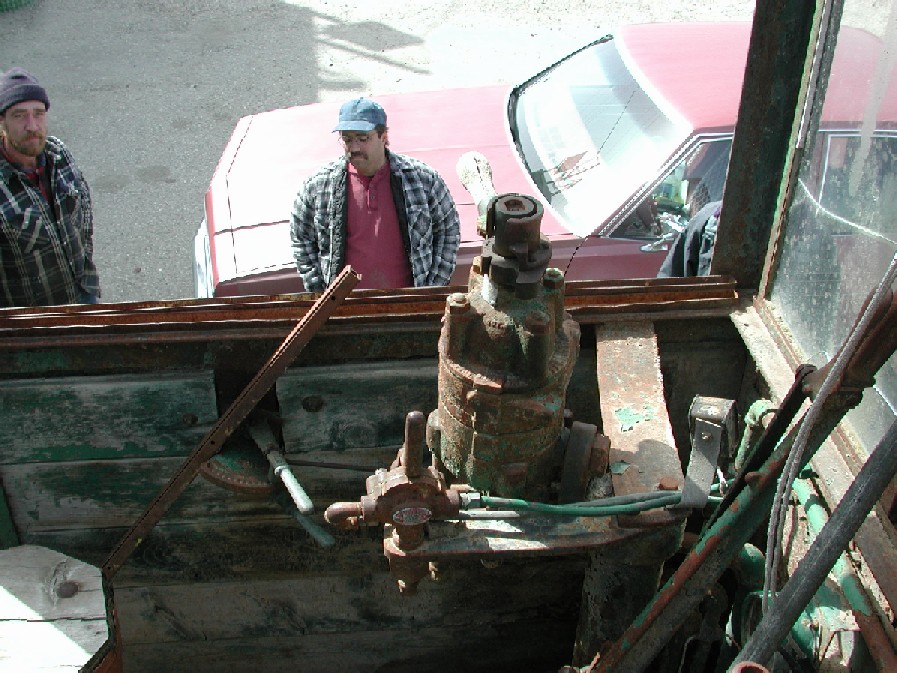

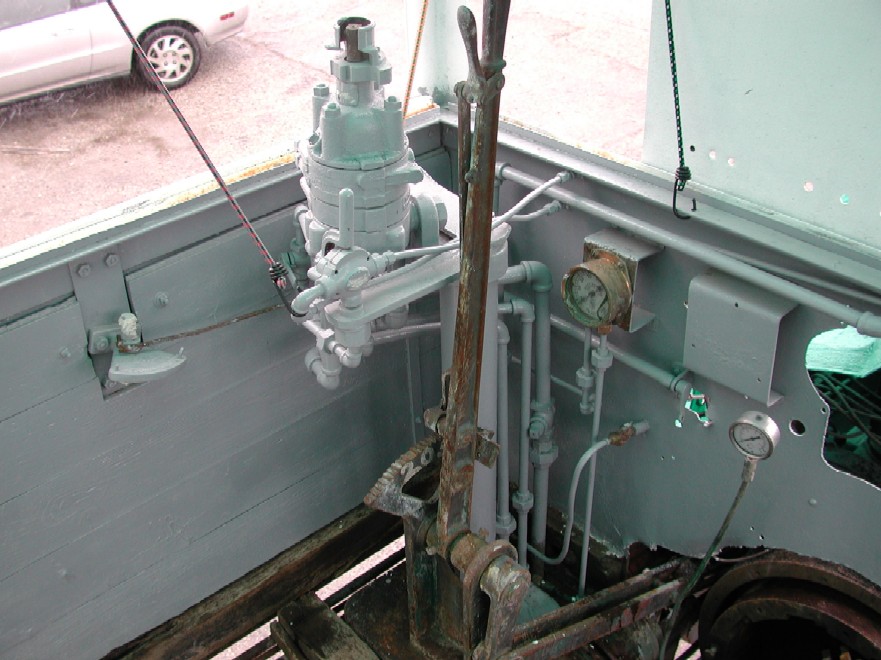

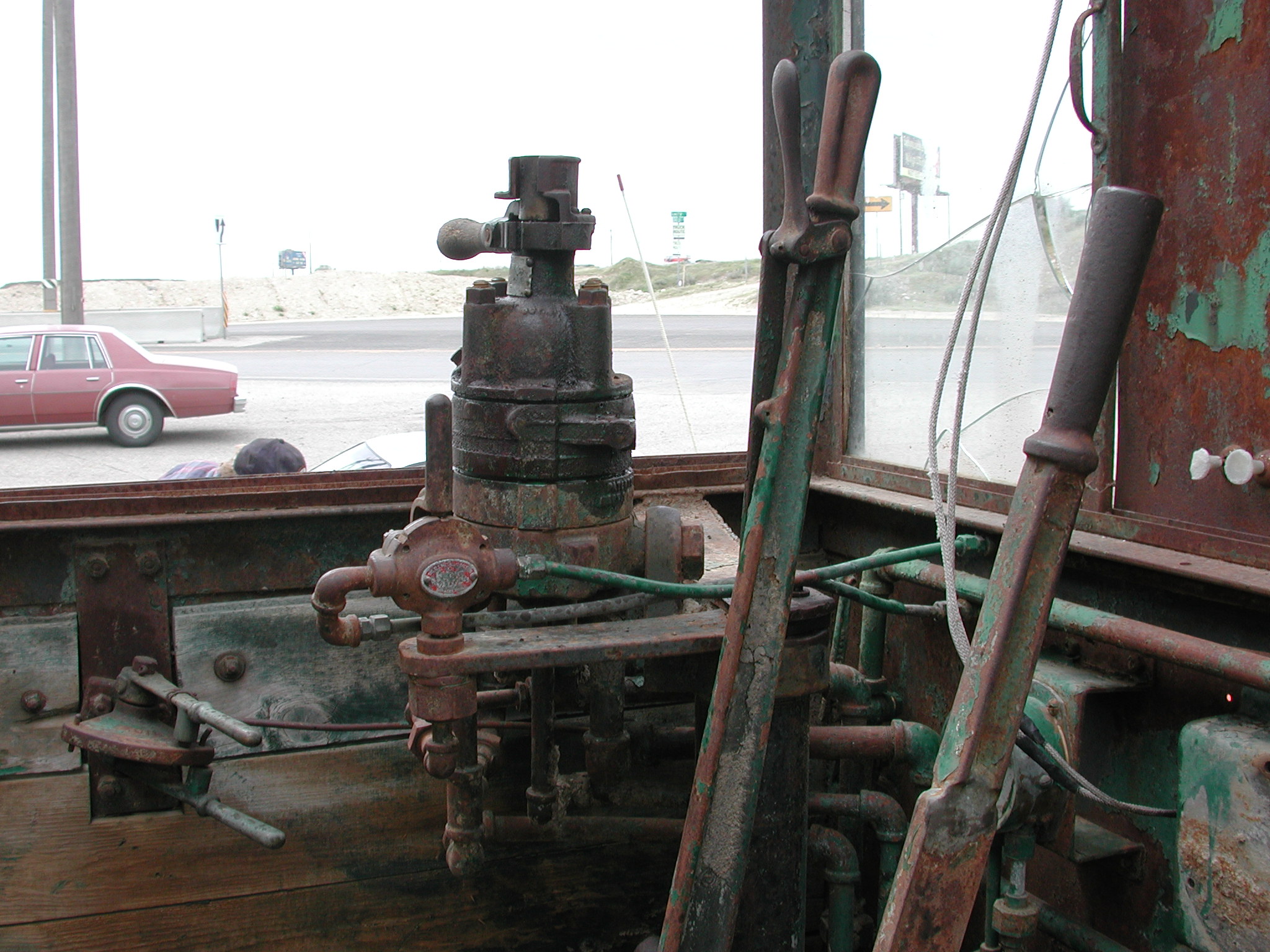

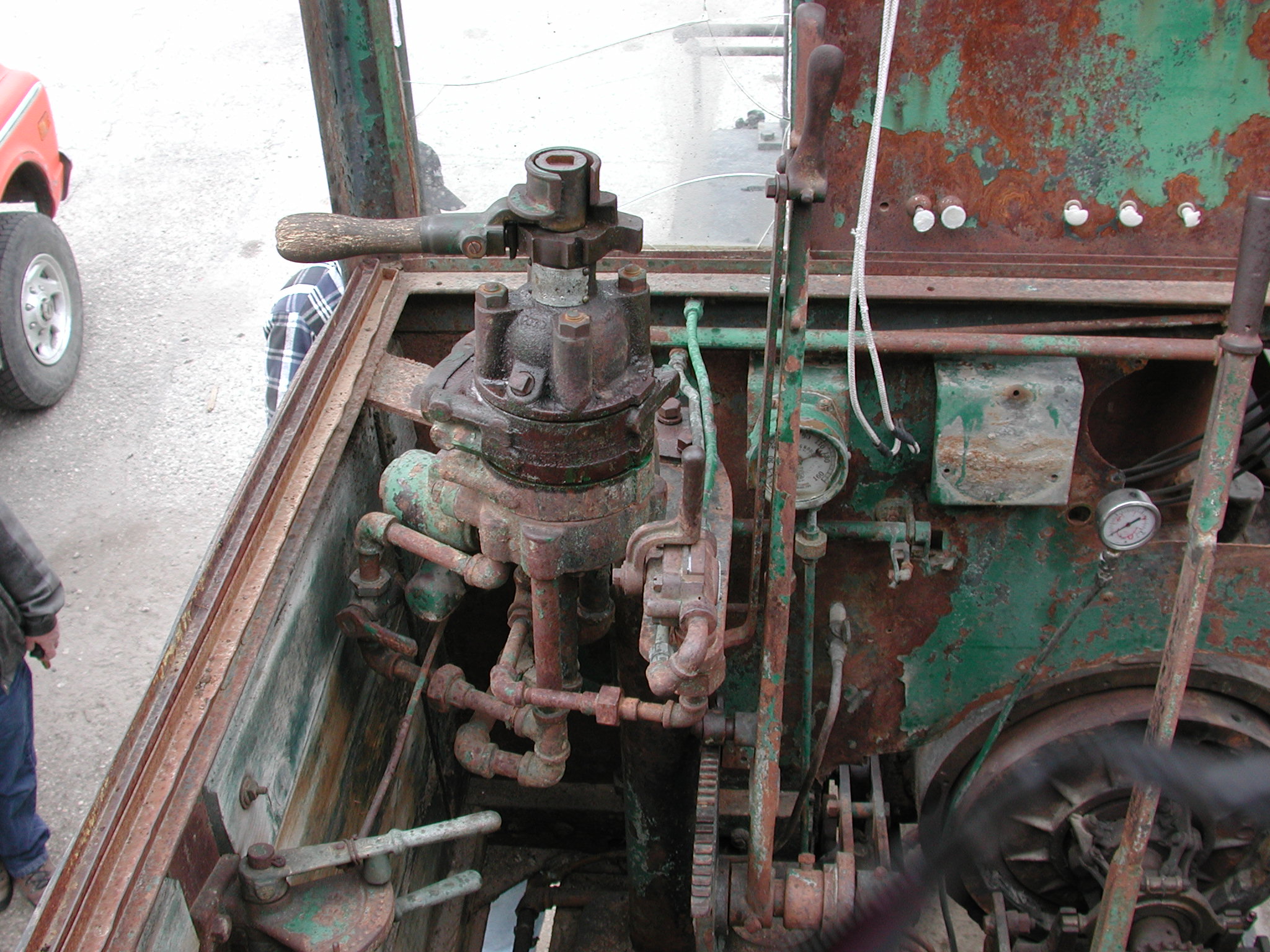

Air brake controls in cab of locomotive.  This is a westinghouse automatic air brake control model H6 with a 6C air charging system..


Another view of air brake.  The brakes were tested with air and did work!  However, due to some minor leaks new gaskets will need to be installed.

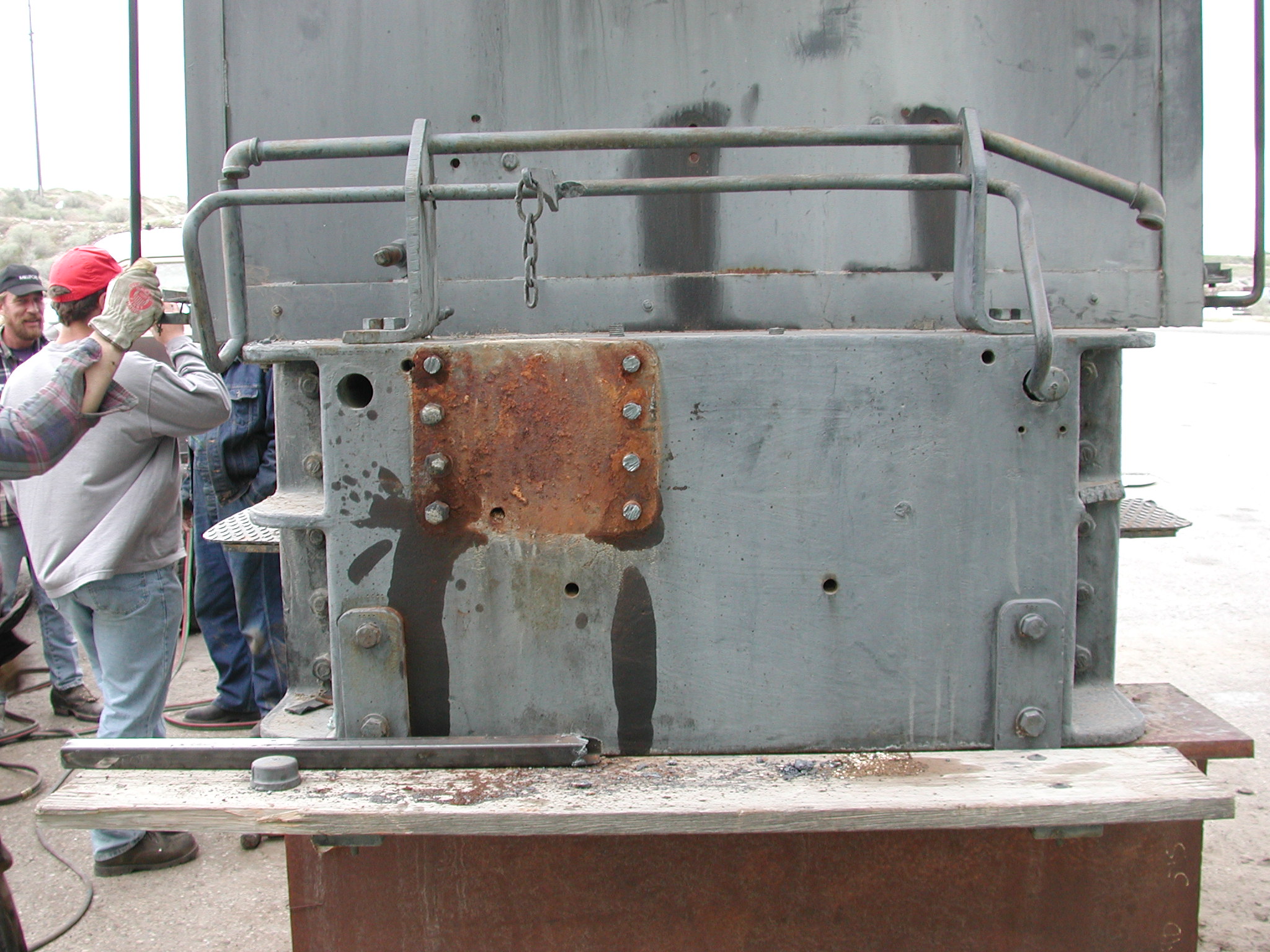

Removal of front coupler and pocket.


Removal of rear coupler and pocket.

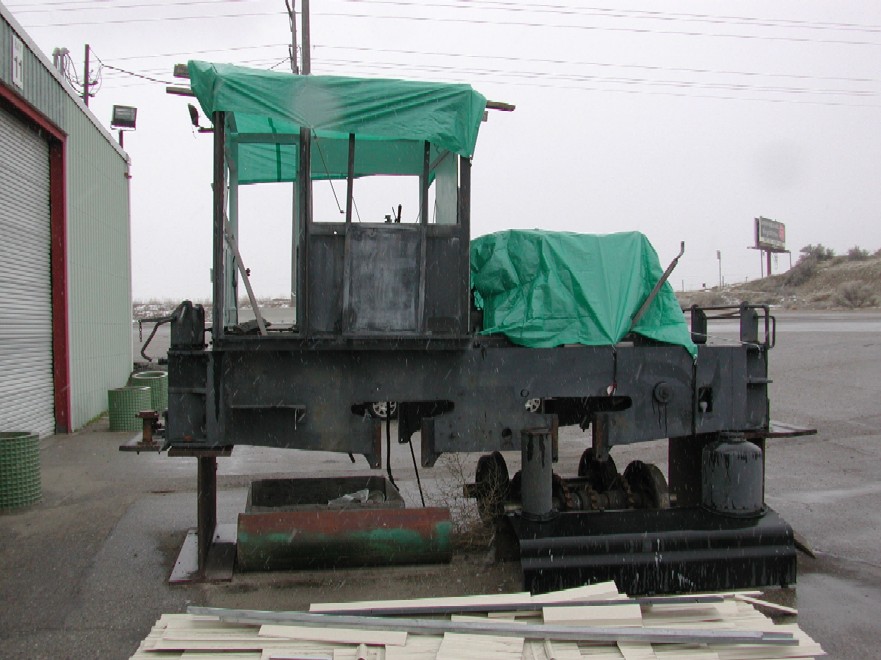

Photos of #100 taken on 1/19/2002:

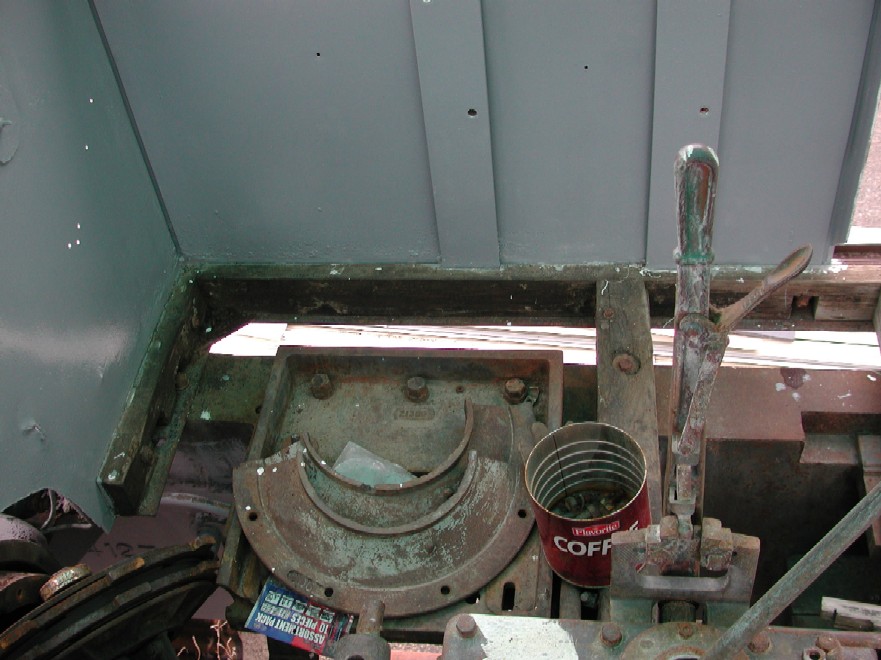

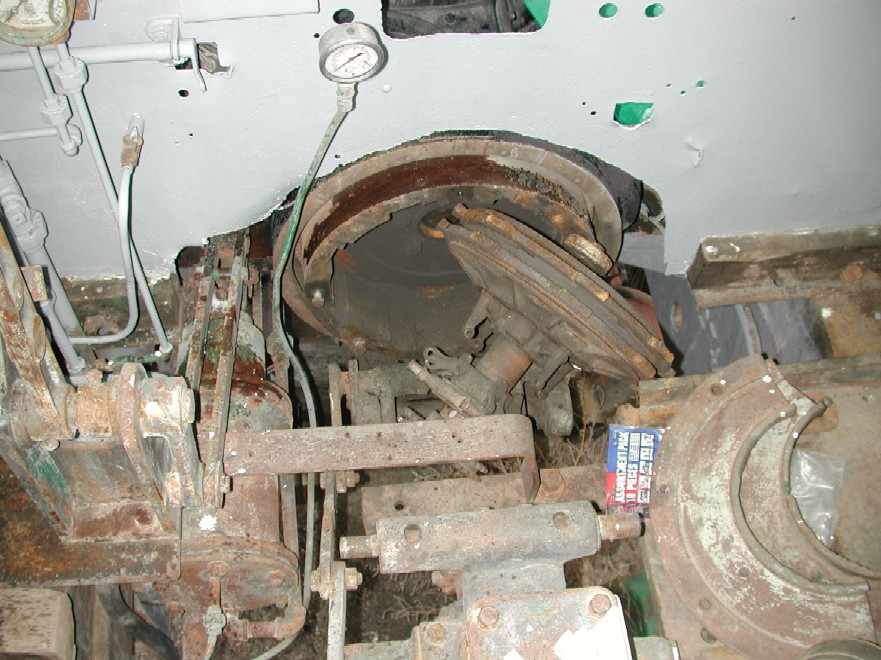

  Heads are off the engine.  Engine is being cleaned up, painted and repaired from the many years of neglect.  Still plenty of work to do.
